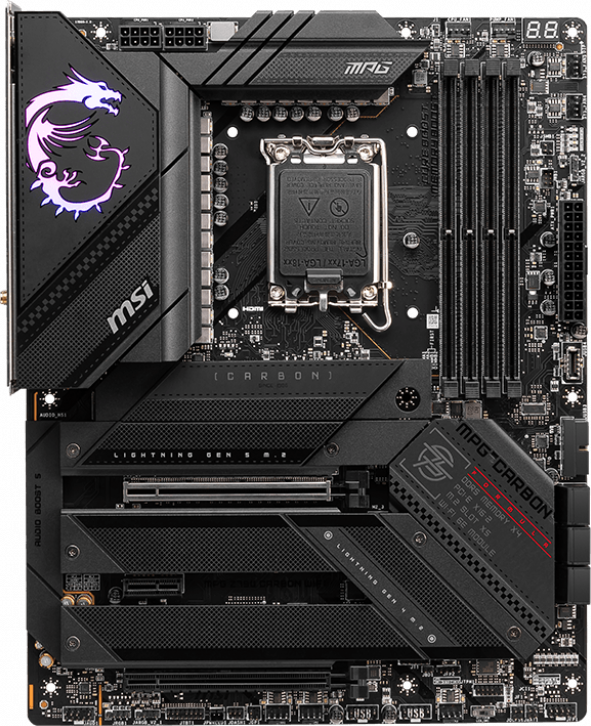

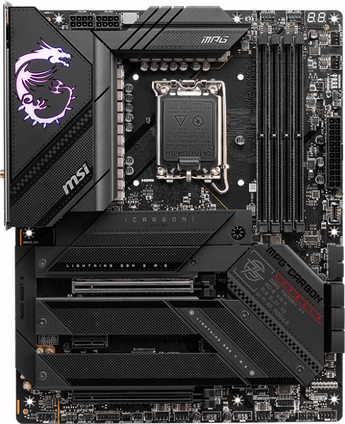

MSI MPG Z790 CARBON WIFI - Preorder: Late December

SKU#33226

Customize & add to cart
bread

Prequalify Now

ADD TO CART
Total: $399.00Add to cart
Hide this tab

MSI MPG Z790 CARBON WIFI - Preorder: Late December

UPDATED PRICE: $399.00
3% CASH DISCOUNT: -$11.97
*Restrictions May Apply to Cash Discounted Price
SUBTOTAL: $387.03
ADD TO CART
ADD TO WISHLIST
SAVE CONFIGURATION
SEND CONFIGURATION
LOAD
PRINT SHARE

Have Questions?

Toll Free: 1-877-289-9684

Description
CHIPSET INTEL Z790
CPU SUPPORT Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
ONBOARD GRAPHICS 1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
MEMORY 4x DDR5, Maximum Memory Capacity 128GB
Memory Support 7600+(OC)/7400 (OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC) /4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7600+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
EXPANSION SLOT 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
STORAGE 5x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_5 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
6x SATA 6G port
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
* SATA_A1~A2 do not support RAID function.
LAN Intel® 2.5Gbps LAN
WIRELESS / BLUETOOTH Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.2**, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
"
USB 4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
6x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2x2 Type C (Rear)
1x USB 3.2 Gen2x2 Type C (Front)
AUDIO Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
INTERNAL I/O 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen 2x2 Type C
LED FEATURE 1x EZ LED Control switch
1x 2-Digit Debug Code LED
4x EZ Debug LED
BACK PANEL PORTS
  1. Clear CMOS / Flash
  2. USB 3.2 Gen 1 5 Gbps (Type-A)
  3. 2.5G LAN
  4. USB 3.2 Gen 2 10Gbps (Type-A)
  5. Audio Connectors
  6. Smart Button
  7. HDMI™
  8. USB 3.2 Gen 2 10Gbps (Type-A)
  9. USB 3.2 Gen 2 10Gbps (Type-C)
  10. USB 3.2 Gen 2x2 20Gbps (Type-C)
  11. Wi-Fi / Bluetooth
  12. Optical S/PDIF Out

PCB DIMENSION ATX
243.84mmx304.8mm
