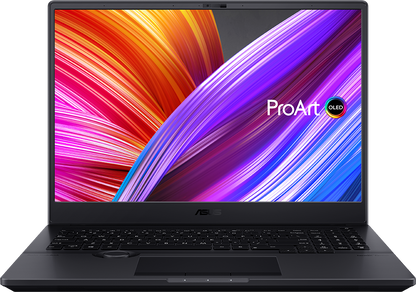

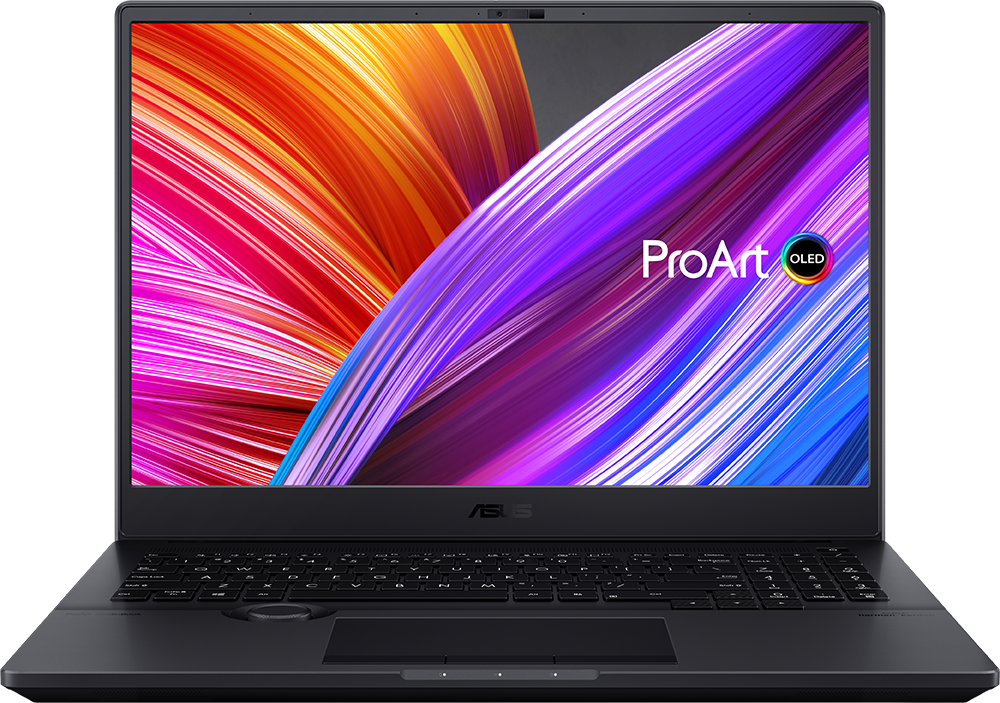

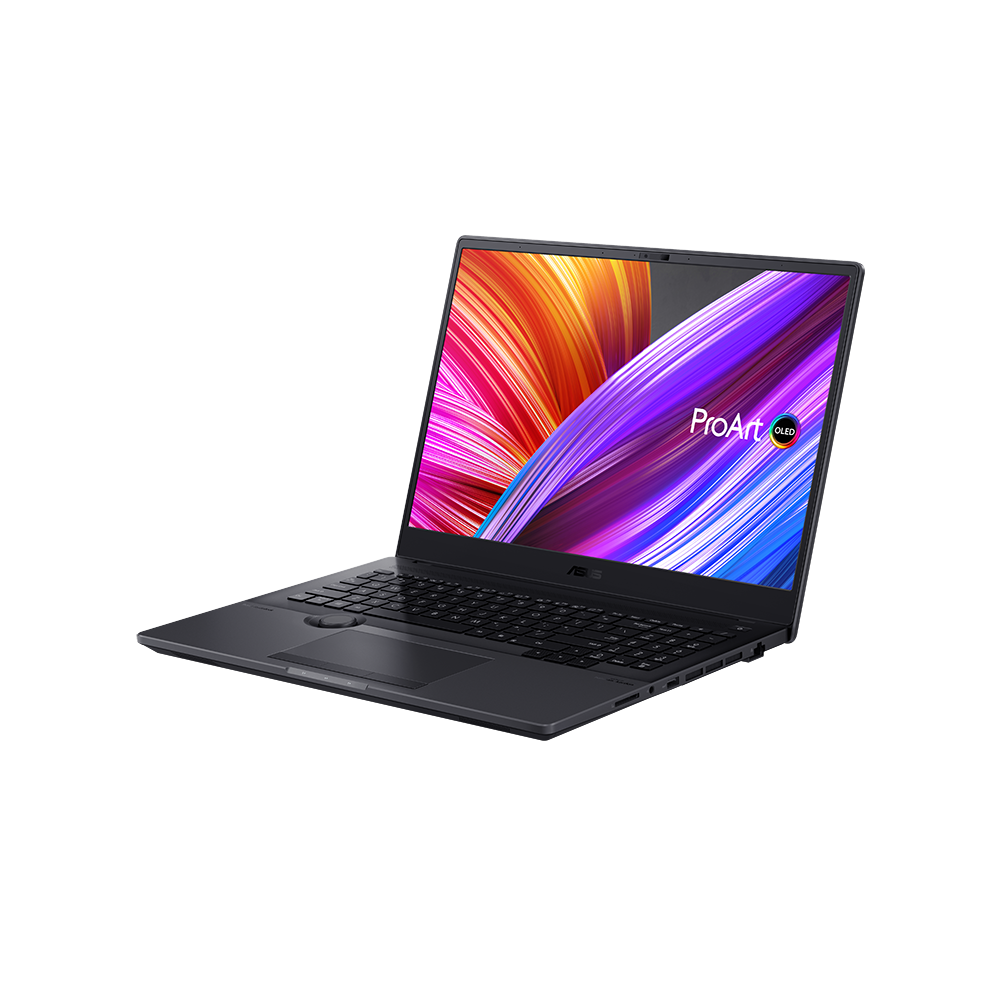

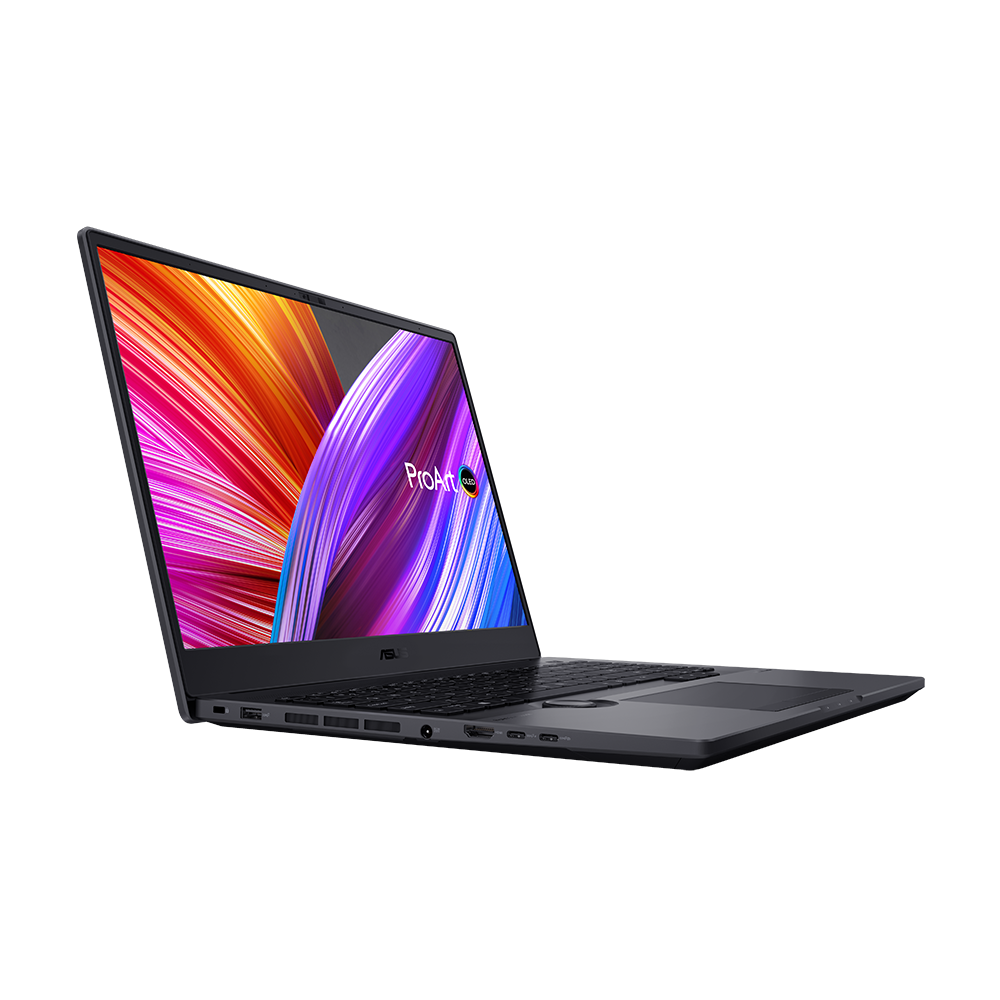

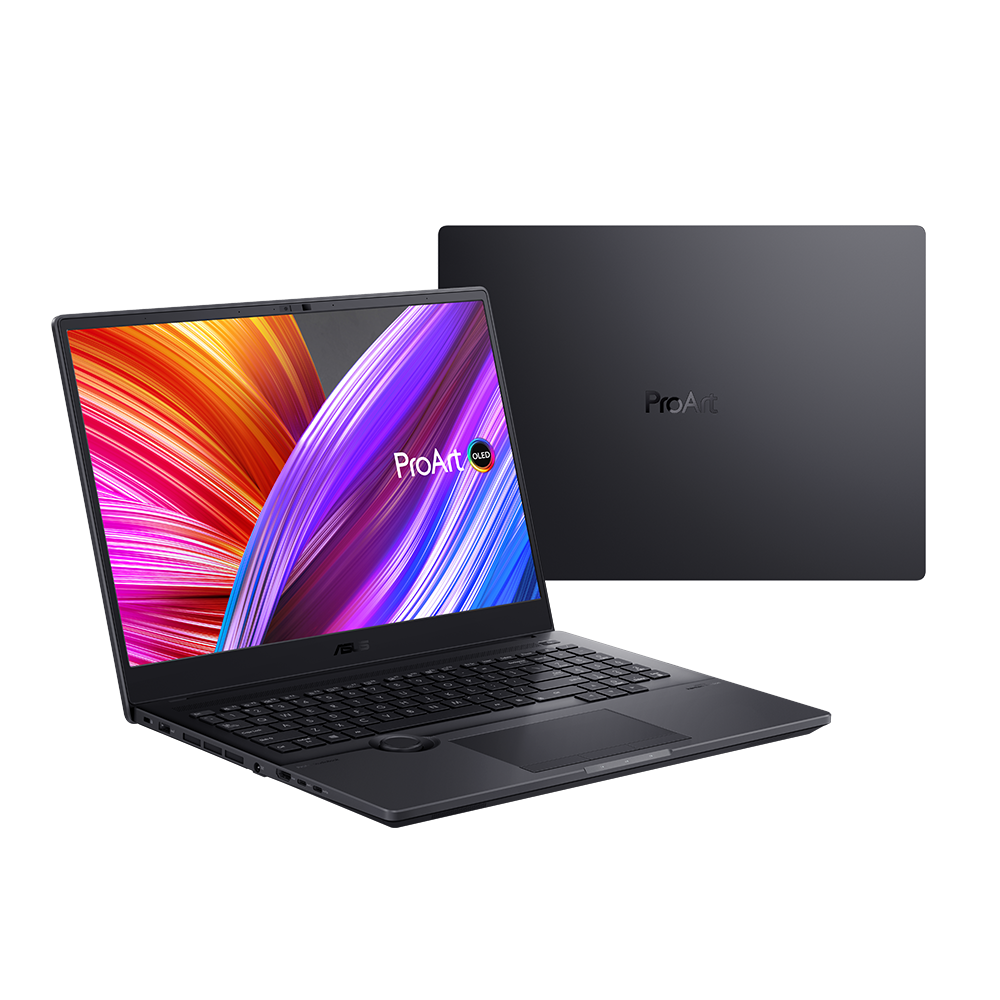

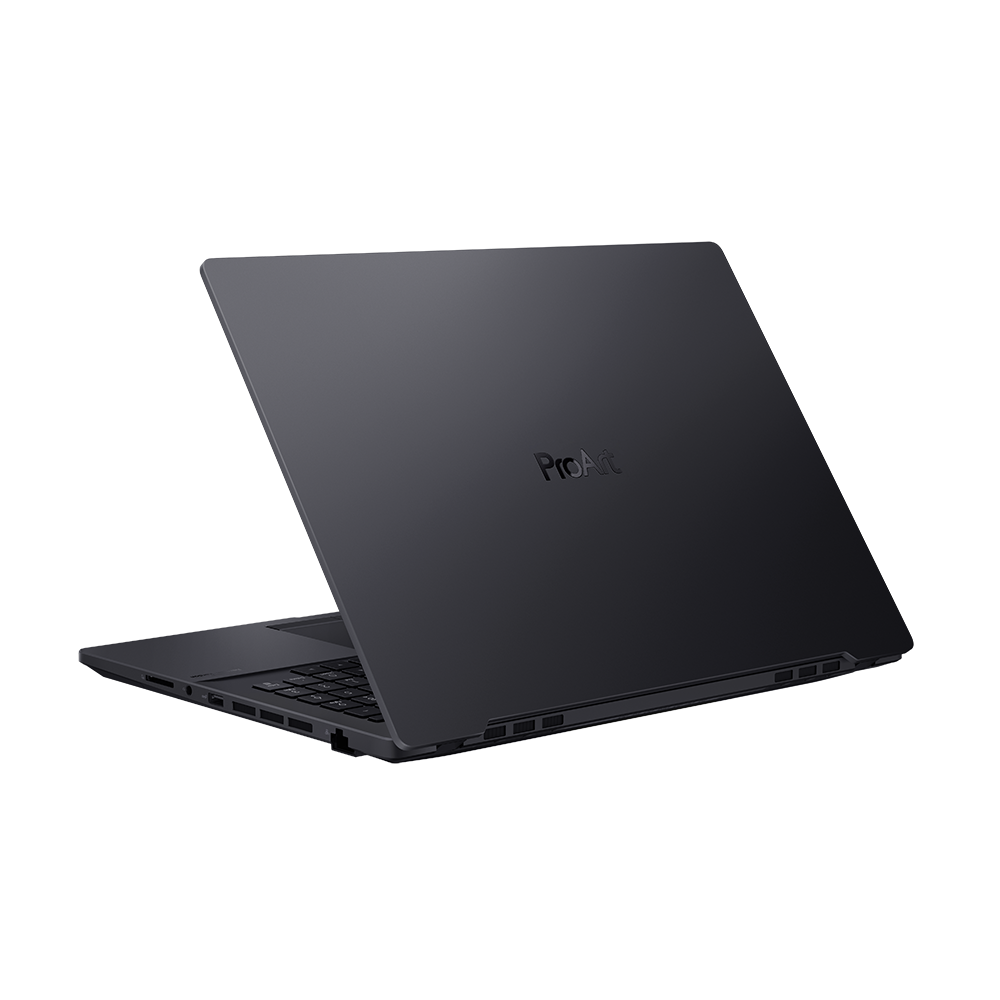

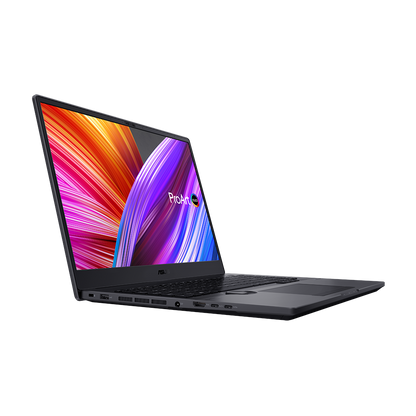

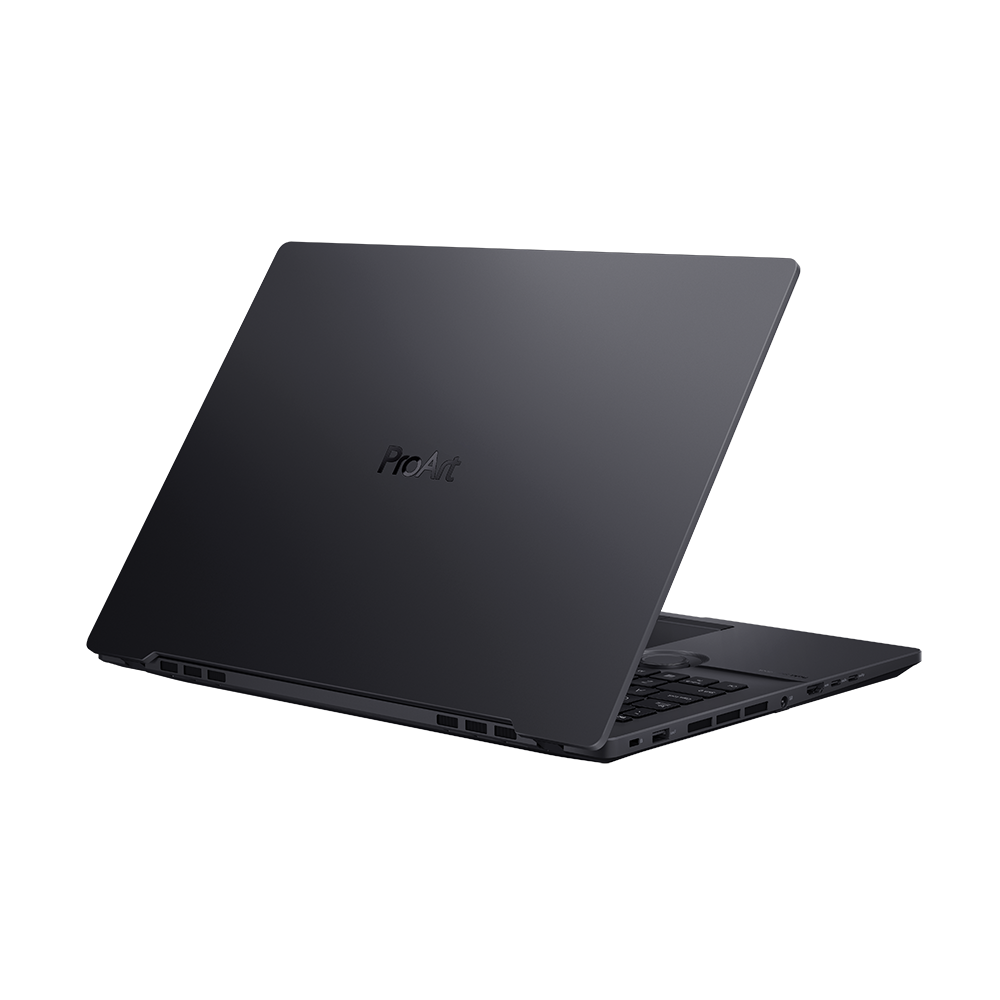

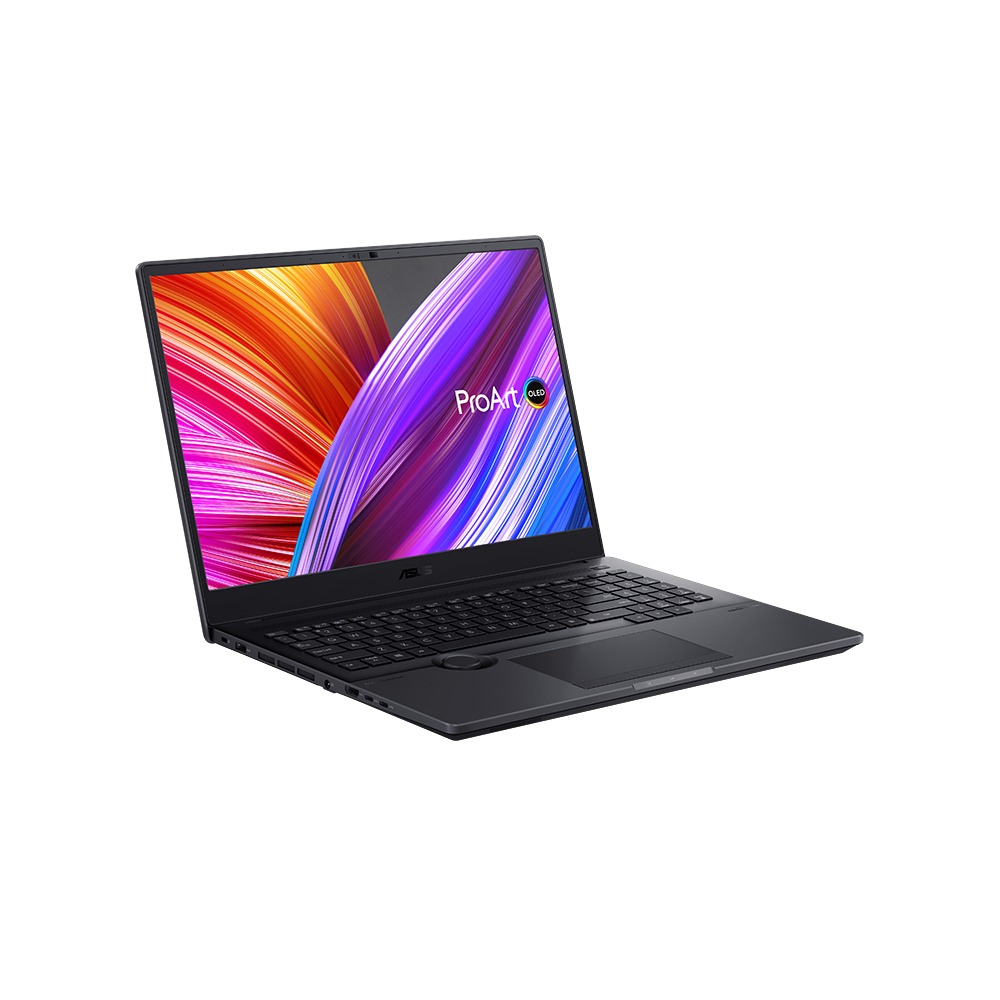

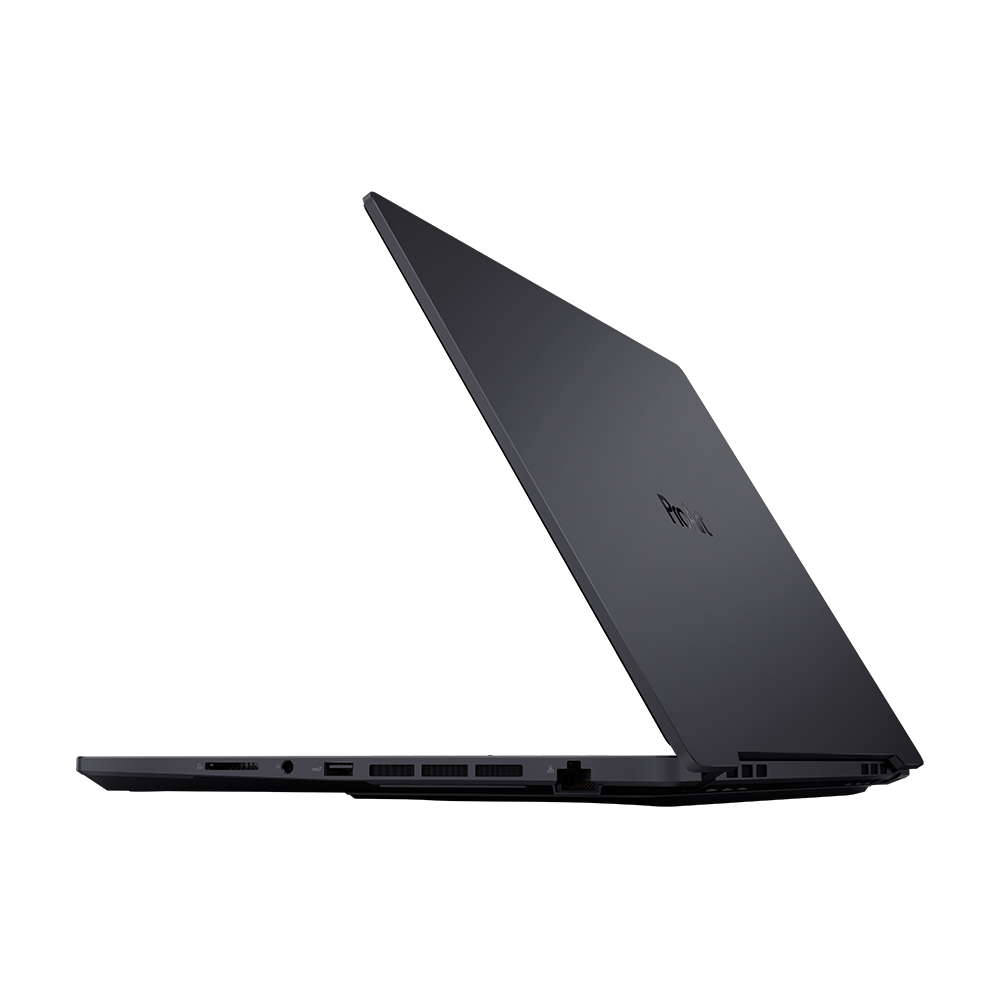

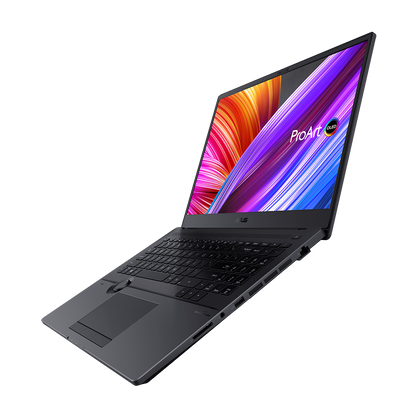

ASUS ProArt Studiobook 16 OLED H5600QM-XB96 Creator Laptop

$1,999.99 Sold out
Type: Shown in platform
Type: Shown in platform

Product details.

  • 16.0" WQUXGA 4K
  • AMD Ryzen™ 9 5900HX
  • GeForce RTX™ 3060
  • Up to 64GB
  • 1TB NVMe SSD
  • ~2-3 Hrs
  • 5.29 lbs

Description



Born for Creative Pros

Turn your creative vision into reality with the ProArt Studiobook 16 OLED studio laptop: it pushes every boundary to give you the effortless creative experience you’ve always wanted, but never thought possible. With a certified color-accurate 16-inch 4K OLED HDR 16:10 display, up to a breathtakingly powerful AMD® Ryzen™ 5000 series processor, fast NVIDIA® GeForce RTX™ 3070 graphics, huge amounts of memory, advanced ultrafast storage, superb I/O connectivity, and ultra-precise fingertip control over your creative apps with the groundbreaking new ASUS Dial, ProArt Studiobook 16 OLED is simply the best creator laptop we’ve ever made.





Performance for professionals

ProArt Studiobook 16 OLED was designed with one goal in mind: to give you all the raw performance you need to handle even the toughest, most resource-hungry projects. It’s equipped with up to a mighty AMD Ryzen 5000 series processor, fast NVIDIA GeForce RTX 3070 graphics, one of the world’s fastest SSDs, and has a flexible memory configuration with up to a massive 64 GB of high-speed RAM. It’s the ultimate professional laptop, built for the ultimate professional.





Zero-wait launching and loading

When deadlines are looming, you shouldn’t have to wait for anything, so we’ve given ProArt Studiobook 16 OLED an advanced storage system that can take up to two ultrafast PCIe® 3.0 x4 SSDs. These can be configured as a fast RAID 0 array for maximum storage performance, controlled by a dedicated AMD system-on-a-chip (SoC) that delivers world-beating 6800 MB/s data-read speeds in RAID 0 mode. With ProArt Studiobook 16 OLED, you’ll enjoy the time-saving benefits of instant boot times, lightning-quick app loads and zero-wait file operations.





Fast graphics, stable drivers

Fast 3D graphics processing power is provided by up to an NVIDIA GeForce RTX 3070 GPU, which is based on the NVIDIA Ampere architecture, NVIDIA’s second-generation of RTX technology. Whether you’re working on complex 3D scenes, high resolution video, or high-quality livestreaming, ProArt Studiobook 16 OLED is more than equal to the task thanks to the advanced features in the GPU including ray tracing and AI acceleration and fast GDDR6 memory, along with the ability to increase GPU power from 80 W to 110 W, adjusting the system fan speed as needed for optimum performance. For outstanding driver stability, we use NVIDIA Studio Drivers to ensure maximum performance, rock-solid reliability, and wide software compatibility. For even more performance, ProArt Studiobook 16 OLED also uses NVIDIA Max-Q technology with the AI-based Dynamic Boost 2.0 feature, intelligently managing power between the GPU and CPU to give you maximum performance while you are gaming or creating.





As fast as your imagination

Powered by up to an AMD Ryzen 9 5900HX processor with 8 cores and 16 threads for effortless multitasking, ProArt Studiobook 16 OLED is capable of anything your imagination can create. There’s even more performance on tap when you enable Performance mode: this can boost the CPU power to 75 W sustained, or 95 W temporarily, adjusting the fan speed setting automatically to achieve best performance.





It’s cool to be quiet

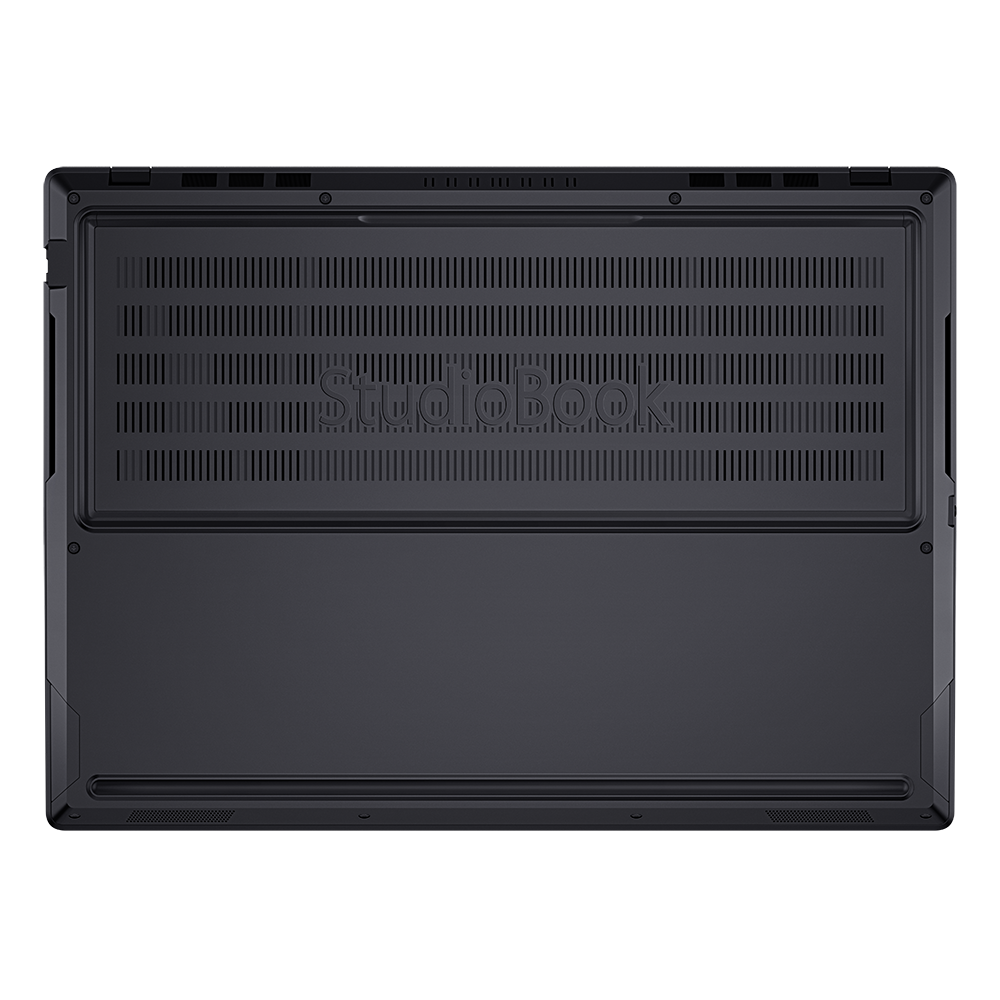

Keeping a powerhouse like ProArt Studiobook 16 OLED cool is vital for top performance, but unwanted noise is the enemy of creativity. We’ve designed the ASUS IceCool Pro cooling system to let the mighty AMD CPU run comfortably at a blistering 140 watts total TDP (50 W CPU and 90 W GPU) in Performance mode — with no throttling. This remarkable feat of engineering uses dual 102-aerofoil blade fans, the world’s first to use over 100 blades3. The slim aerofoil blades are made from side-chain liquid crystal epoxy polymer (SCP): the quiet, power-efficient 3D-curved design increases airflow by 16%4. Six heat pipes and seven intelligent sensors ensure optimum cooling performance, while keeping everything quiet — under 40 dBA in Normal mode — so you can concentrate on the task at hand without distractions. In addition, ProArt Studiobook 16 OLED features NVIDIA's AI-powered WhisperMode 2.0, which gives you even more control over the laptop's fans so you can balance performance and acoustics.

102 blades | 16% increased airflow | Up to 140W total TDP (CPU + GPU) | < 40dBA noise under Normal mode

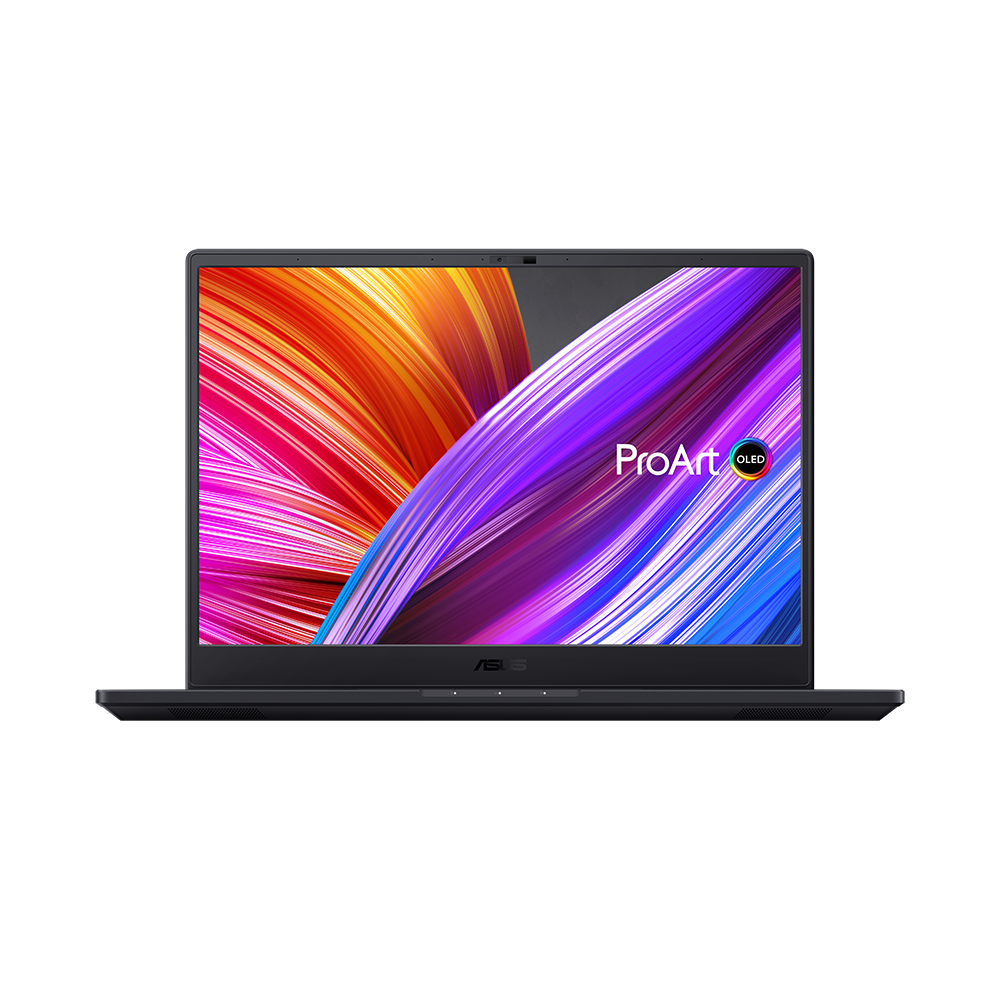

World’s first 16” 4K OLED HDR 16:10 display

Your creations demand visual perfection, and ProArt Studiobook 16 OLED delivers it with a 4K OLED HDR6 display that’s in a class of its own. This display delivers truly photorealistic visuals that are VESA DisplayHDR™ 500 True Black certified for ultra-high contrast and deep blacks, and the 100% DCI-P3 industry-standard color gamut ensures you’re seeing as many vivid, true-to-life colors as possible. For delivering precise color accuracy, this remarkable display is Calman verified, PANTONE® Validated, and has a Delta-E color-accuracy value of less than 27. ProArt Studiobook 16 OLED is also easier on your eyes for those long late-night sessions, with 70% lower blue-light emissions compared to LCD models, and it’s certified for eye care by TÜV Rheinland.





Ultimate professional-grade colors

ASUS OLED laptops deliver exceptionally detailed and realistic visuals, with a cinema-grade 100% DCI-P3 color gamut. This means that the colors reproduced on the display are richer and more vivid: it’s ideal for color-intensive projects, but also enhances any kind of content.

100% DCI-P3 color gamut | 133% sRGB color gamut | Cinema-grade industry standard

ASUS OLED laptops maintain a 100% DCI-P3 color gamut at both high and low brightness levels, while on a standard LCD laptop the color gamut is reduced dramatically at low brightness levels. At a gray-level brightness of 16 G, LCD laptops only have an 11% DCI-P3 color gamut, while ASUS OLED laptops maintain a 100% DCI-P3 color gamut.



70% blue-light reduction for eye care

Blue light is known to cause visual discomfort and disrupt sleep quality. However, due to the nature of the special organic lighting materials in an OLED display, ASUS OLED laptops emit 70% less harmful blue light8, and they’re also certified by TÜV Rheinland and SGS. More importantly, unlike traditional blue-light filters, shifting the spectrum means there’s no need to compromise color accuracy.





Eye care, even more critical for children

Since children’s eyes are not fully developed, with a more transparent lens and cornea, harmful blue light can penetrate the eye more easily, potentially causing premature aging of the retina. Research9 has shown that in a five-year-old child’s eyes, approximately 60% of the received blue-light emissions pass through to the retina, compared to only around 20% for a 60-year-old adult. With ASUS OLED displays, the significantly lower blue light levels mean better eye care for children.





OLED has much higher perceptual brightness

On conventional LCD displays, detail and color quality usually decrease dramatically as the brightness is reduced. But ASUS OLED laptops are able to show great detail at lower brightness settings due to their high contrast and their ability to maintain a wide color gamut at low brightness. ASUS OLED laptops can maintain good color reproduction at any brightness level, so you can freely adjust the screen’s brightness to suit your working environment, while still enjoying exceptionally vivid colors. For example, in the living room environment (usually illuminated at about 100 lux), you only need 177 nits brightness in an OLED display to produce the same clear image as 400 nits brightness in an LCD display. At the lower brightness levels needed on OLED displays, there’s less harmful blue light emitted.





True black: See the unseen

ASUS OLED laptops reproduce blacks perfectly. An OLED pixel consists of three sub-pixels, each with its own self-generated illumination: a 4K (3840 x 2400) display has 9,216,000 pixels, which means it has 27,648,000 self-illuminated sub-pixels, compared to just a few dozen LED backlights in most LCD displays. When displaying black on an OLED display, the pixel is simply turned off to produce the darkest possible black. This enables extremely crisp and clear images even in the darkest scenes. You’ll be surprised to see how many new details you’ll spot in your favorite movies!

1,000,000:1 contrast ratio | Up to 550nits peak brightness | 0.0005nits true black



Fastest response time on any laptop for smooth actions

ASUS OLED displays have a 0.2 ms response time — the fastest of any laptop, and 50x faster10 than the average laptop LCD display. In fact, most of LCD laptop displays have a response time between 10 and 25 ms. This ensures smoother fast-paced action scenes, low-latency gameplay, and subtle details like blur-free text scrolling.

0.2ms ultrafast response time | 50X faster response time





See everything, hide nothing

Upgrade your workspace to ProArt Studiobook 16 OLED’s expansive 16:10 display, and you won’t miss a thing. The ultraslim-bezel design gives you more screen real estate than ever, with an aspect ratio that’s a much more natural match for photos than 16:9. It also gives you a clearer view of widescreen media projects, with no need to hide toolbars or playback controls.

16:10 aspect ratio | NanoEdge ultraslim bezel





Make magic happen with ASUS Dial

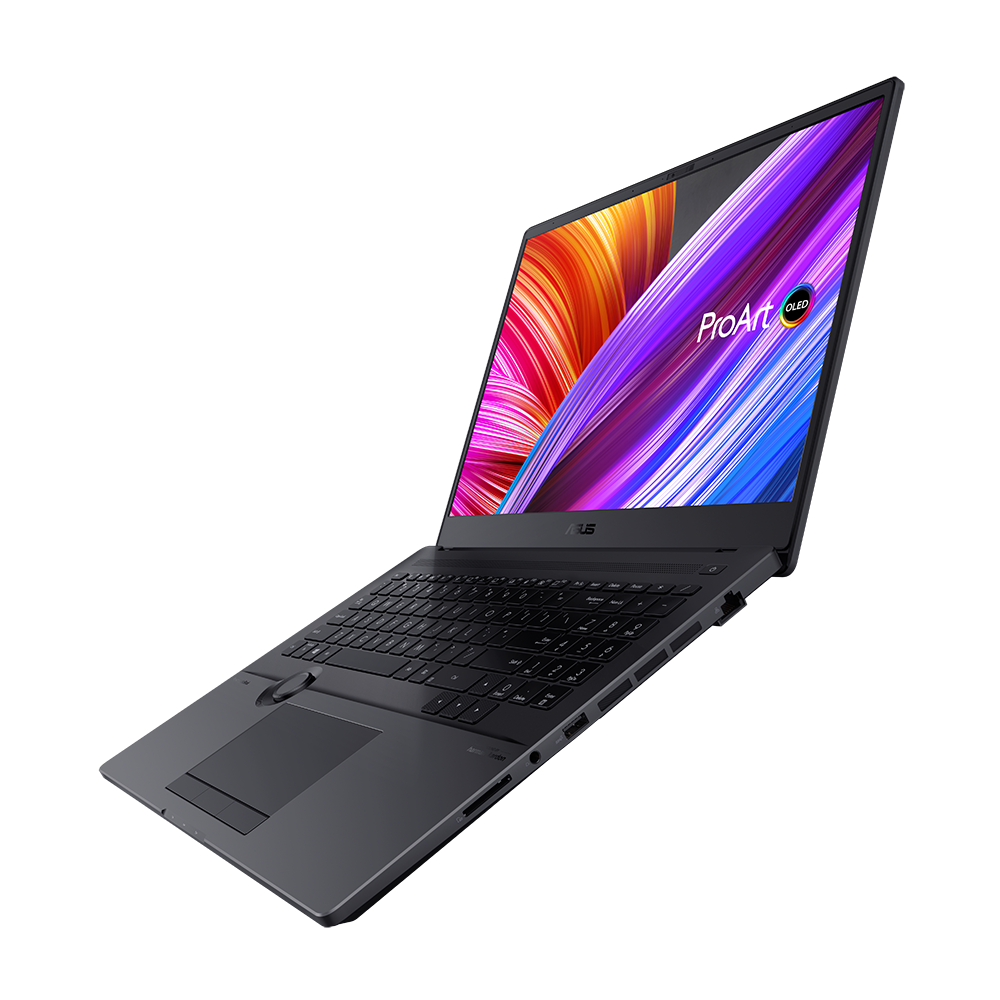

Discover new ways to work with the brand-new and exclusive ASUS Dial, an intuitive physical controller that gives you instant and precise fingertip control over parameters in your creative apps. You can easily change brush size, change saturation, adjust layer opacity, or rapidly undo actions. You can also adjust screen brightness and volume, or vertical scroll to make your creative workflow smoother. There are over 70 functions available to help smooth your creative workflow. ASUS Dial is currently compatible with four Adobe apps: Adobe Photoshop, Premiere Pro, Photoshop Lightroom Classic, and After Effects. It’s fully customizable — and there are more compatible apps on the way!





Power up your imagination

ProArt Creator Hub features an overview dashboard, and allows you switch to different performance modes, calibrate your screen color, or customize your ASUS Dial. It’s a personal portal where you can monitor your laptop’s status, personalize settings, or optimize your workflow. You can also personalize your ASUS Dial for your preferred features, or setup the Customized Keys in Control Settings for endless creativity.

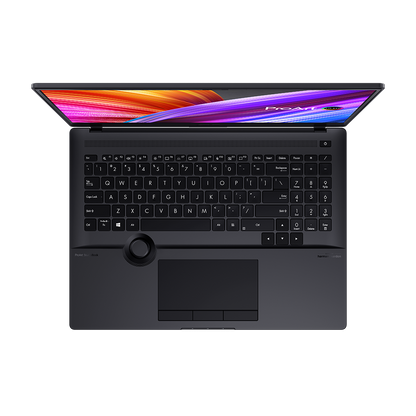

Thoughtful, innovative design

To streamline your creative workflows, your laptop needs to be an extension of yourself. ProArt Studiobook 16 OLED incorporates several hardware features specially crafted for creators, to give you intuitive, precise control over every action.

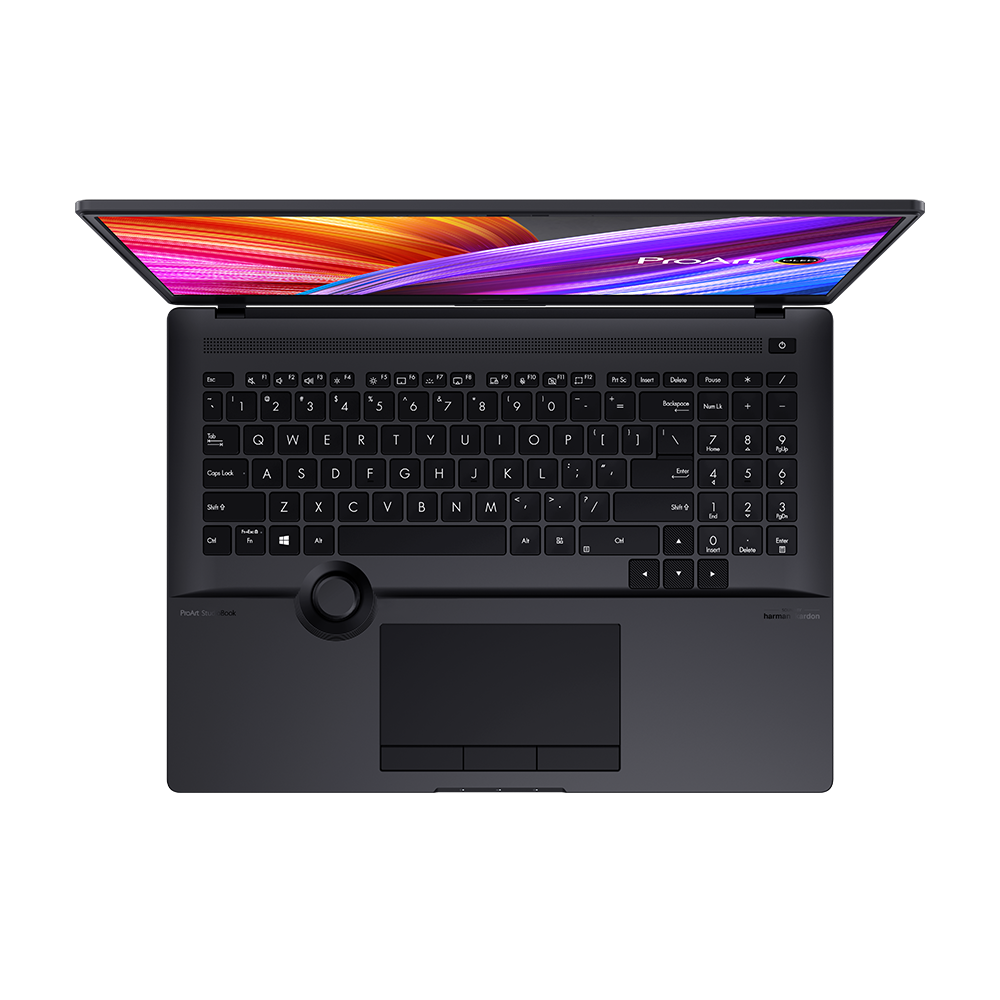

3-button touchpad

The three-button touchpad is specifically designed for 3D designers who need a middle button to control special application functions — such as pan, rotate or orbit. And when combined with the nearby ASUS Dial, it’s a dream team for creators looking for the ultimate in precision control.





Customized keys

To add even more interactivity, the two customized keys on ProArt Studiobook 16 OLED’s keyboard can be assigned to your favorite functions via the ProArt Creator Hub, saving time and effort and keeping you focused on your work.





Touchpad stylus support

The oversized touchpad supports up to 1024 pressure levels for use with a stylus, giving you natural-feeling input for drawing or writing.

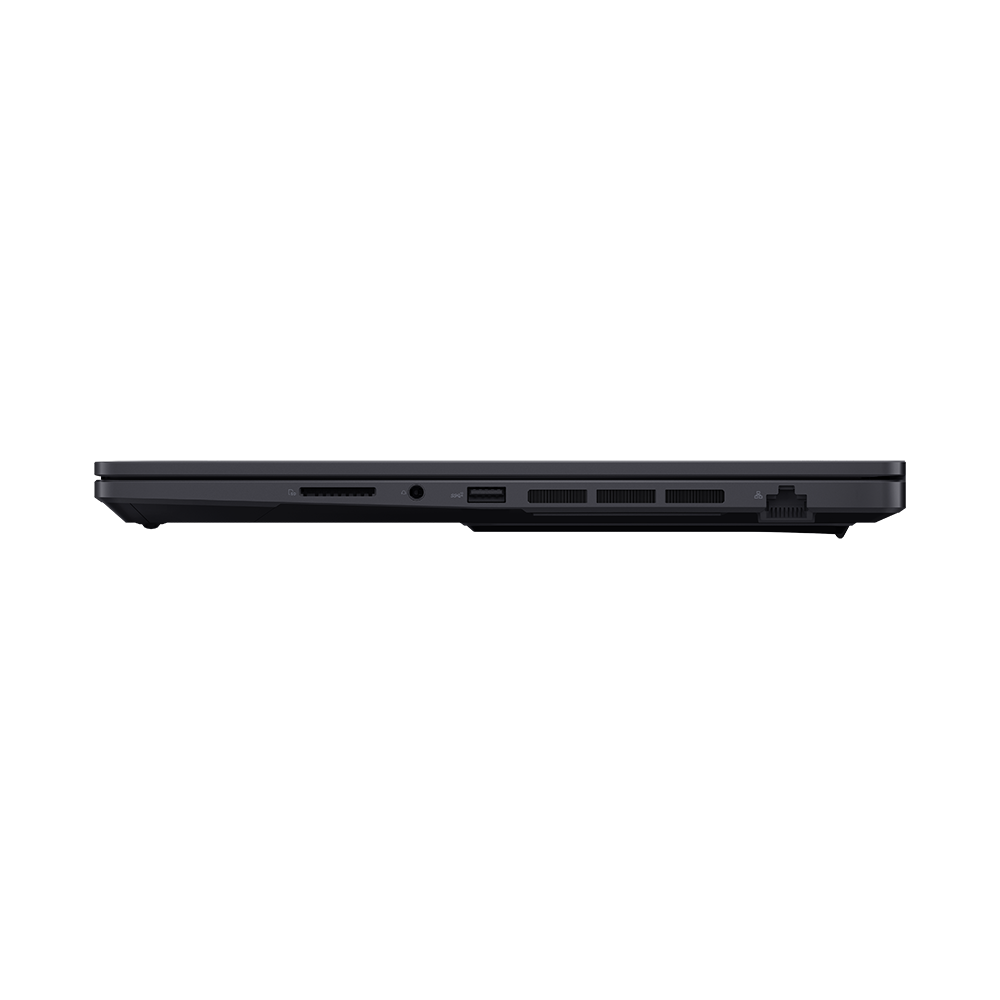

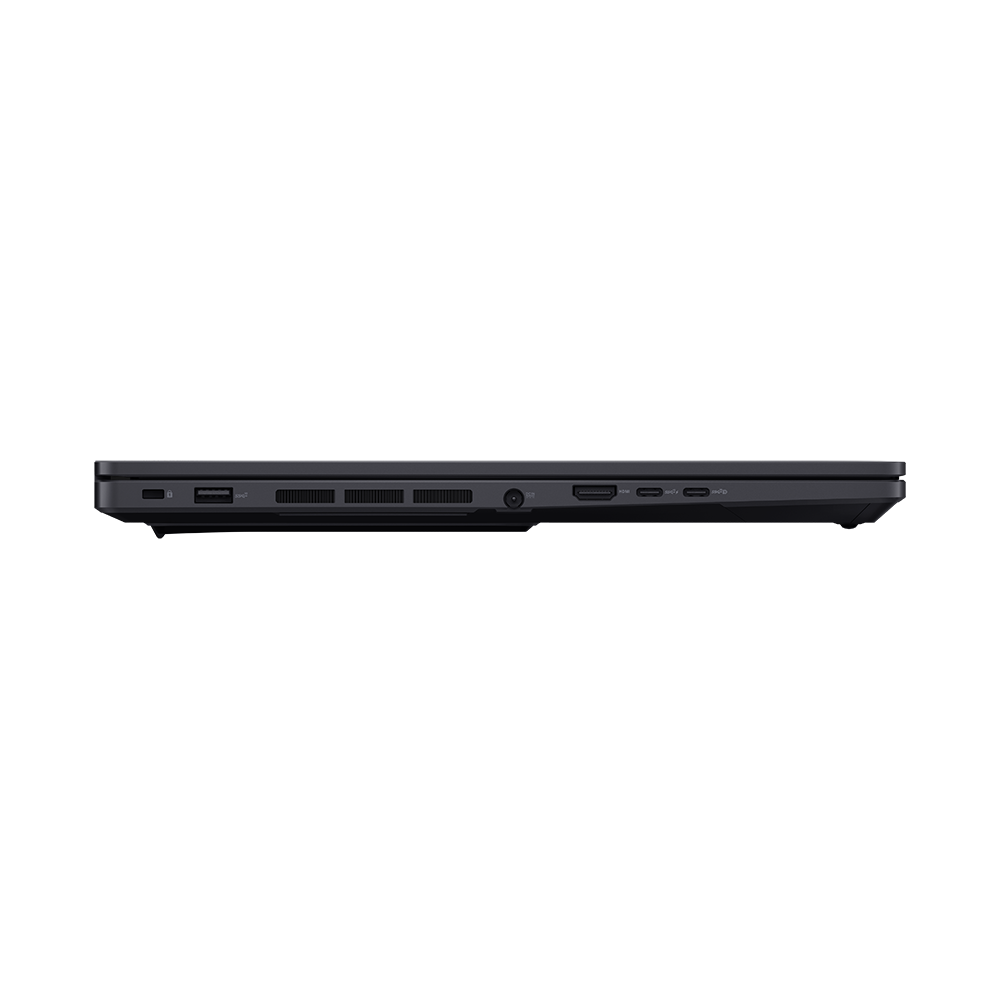

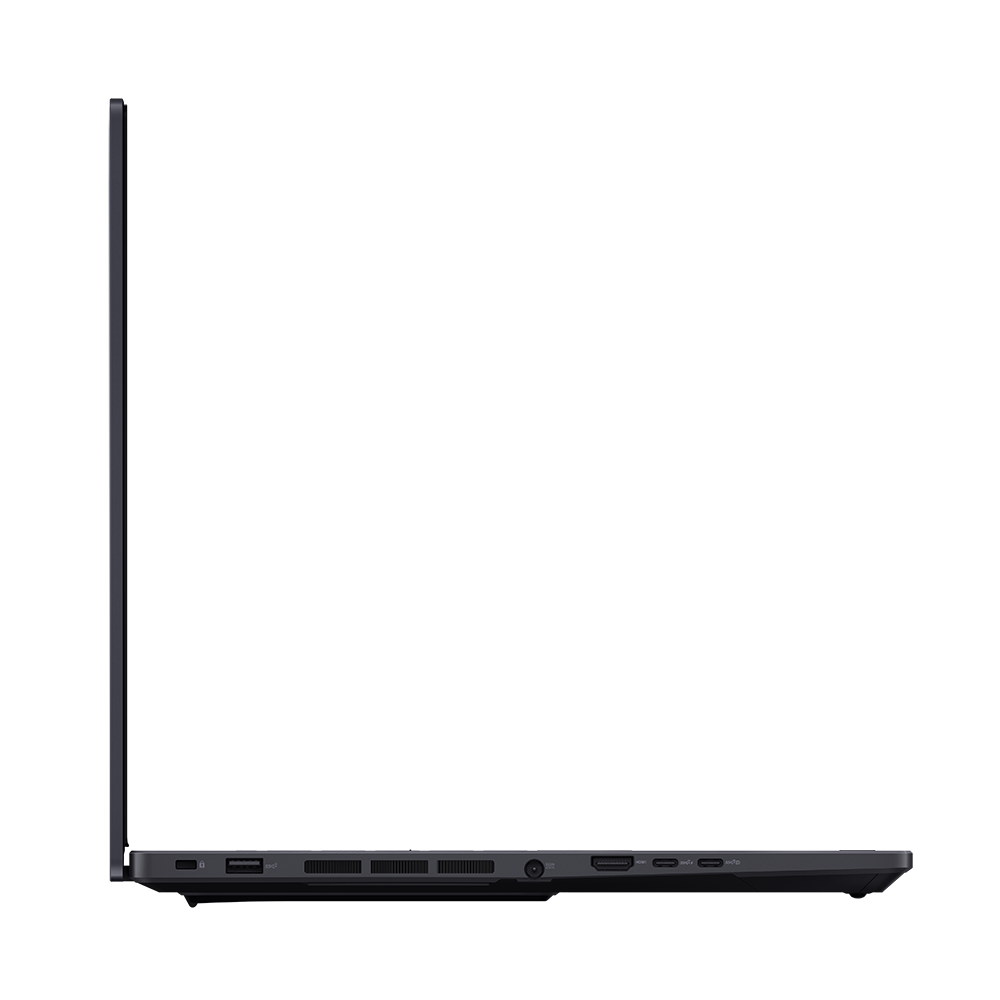

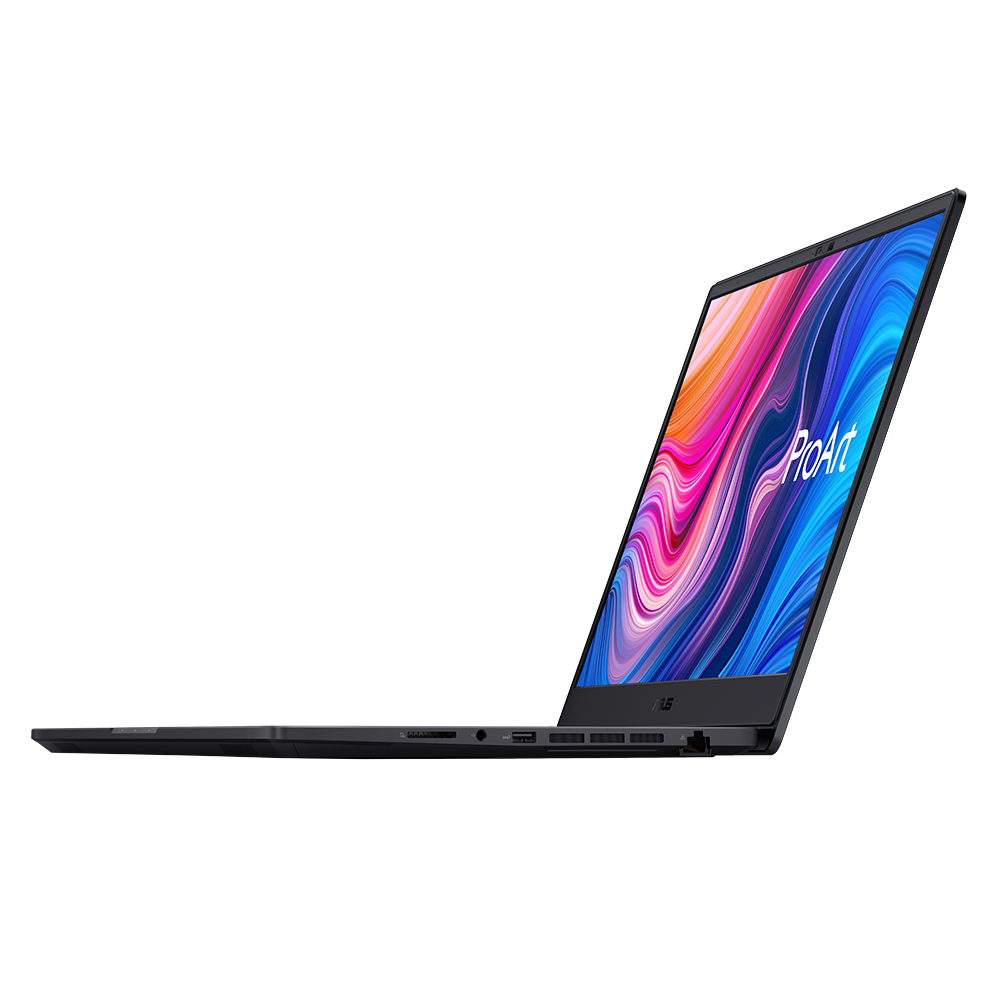

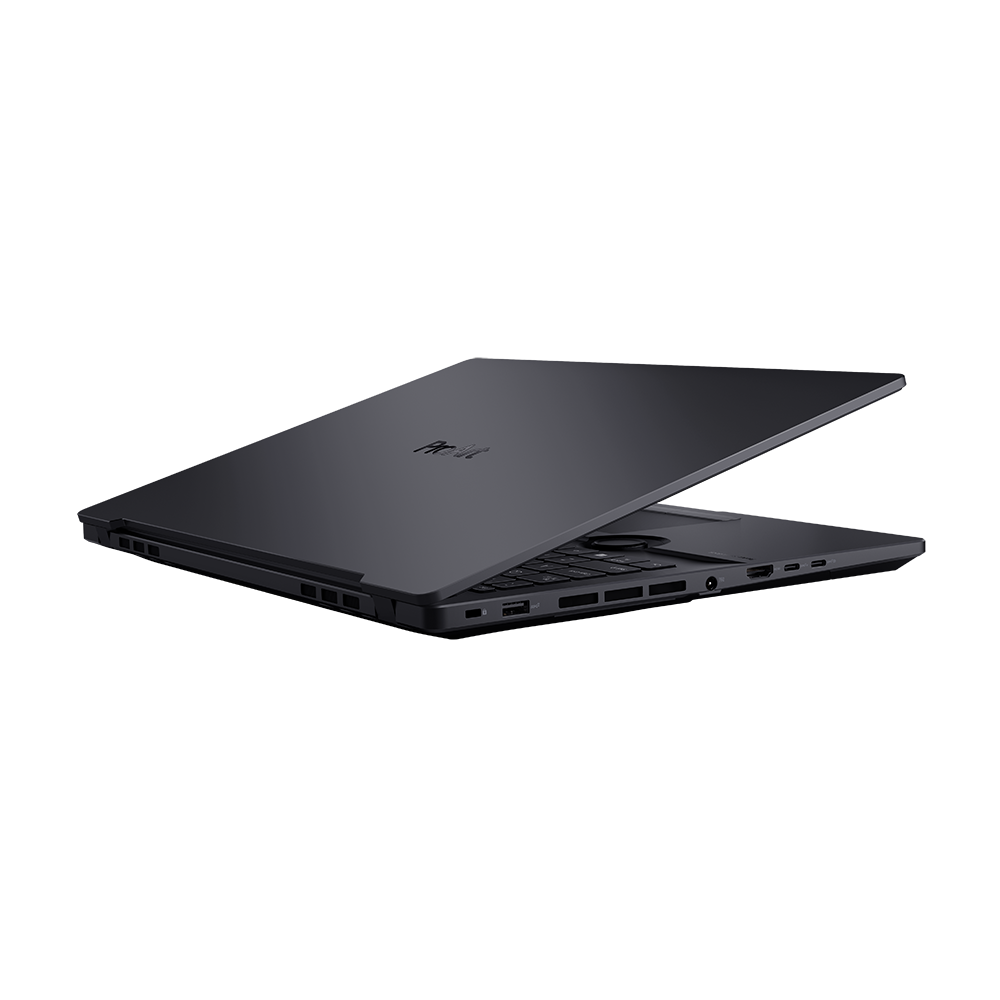

All the right connections

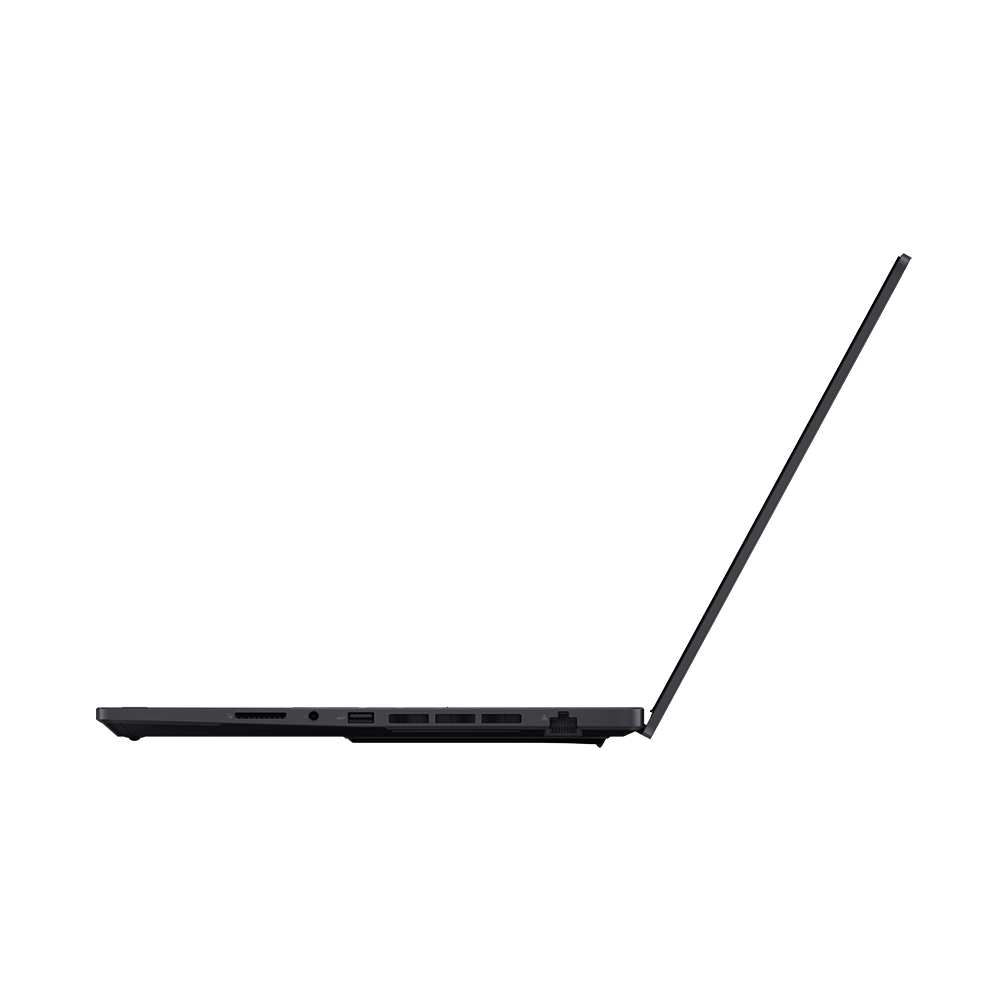

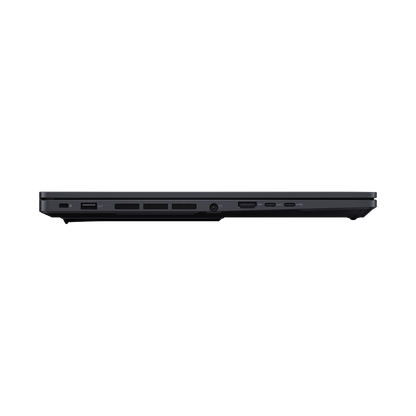

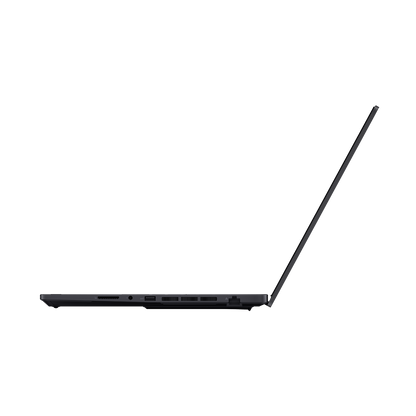

With a full complement of I/O ports, connecting your ProArt Studiobook 16 OLED to your studio peripherals, display devices and networks is easy. There are two USB 3.2 Gen 2 Type-C® ports, with Power Delivery, DisplayPort and VR support11, a standard RJ45 Gigabit Ethernet LAN port, the latest HDMI® 2.1 port, and an SD Express 7.0 card reader that puts your connectivity leagues ahead of the pack.





HDMI 2.1

Support for the very latest HDMI 2.1 standard means you can push high-resolution content to external high-res displays at resolutions of up to 8K / 120 Hz or 10K / 60 Hz, making ProArt Studiobook 16 OLED the perfect choice for today’s visual creators.





SD EXPRESS 7.0

With SD Express 7.0 card reader, ProArt Studiobook 16 OLED is primed and ready for the fastest ever SD Express cards. Supporting speeds of up to 985 MB/s, these are nearly 10x faster than the original SD cards, making it easier and quicker than ever to transfer large files between your devices.





Break the sound barrier

Sound by Harman Kardon and DTS®

The audio experts at Harman Kardon have certified that the finely tuned audio system meets their exacting standards, and DTS® technology delivers an amazing multi-channel sound experience, from any kind of source material. The volume-enhancing, distortion-suppressing dual-channel smart amplifier can drive the twin speakers at the maximum volume possible while preventing long-term damage to the sensitive voice coils of the speakers. Creating or listening to audio in your videos, movies, music or games has never sounded better!

High fidelity, higher standards

Bring your music and audio to life with the audiophile-grade ESS® SABRE DAC, featuring Hi-Res Audio certification for the highest possible audio playback quality and the ability to drive the world’s most sophisticated high-impedance headphones. The expanded dynamic range and lower distortion lets you enjoy richer, clearer highs and deeper bass, so you can immerse yourself in virtual 7.1-channel surround sound.





Pro-grade conference calls

Experience crystal-clear conference calls with ProArt Studiobook 16 OLED’s powerful four-mic array, combined with AI Noise-Canceling technology that works on both incoming and outgoing sound to make you feel as though you’re all in the same room. Shortcut keys allow you to instantly enable noise canceling or mute the mics with simple clicks.

For enhanced personal and business privacy, ProArt Studiobook 16 OLED also has a physical webcam shutter that simply slides over the webcam to instantly disable it.

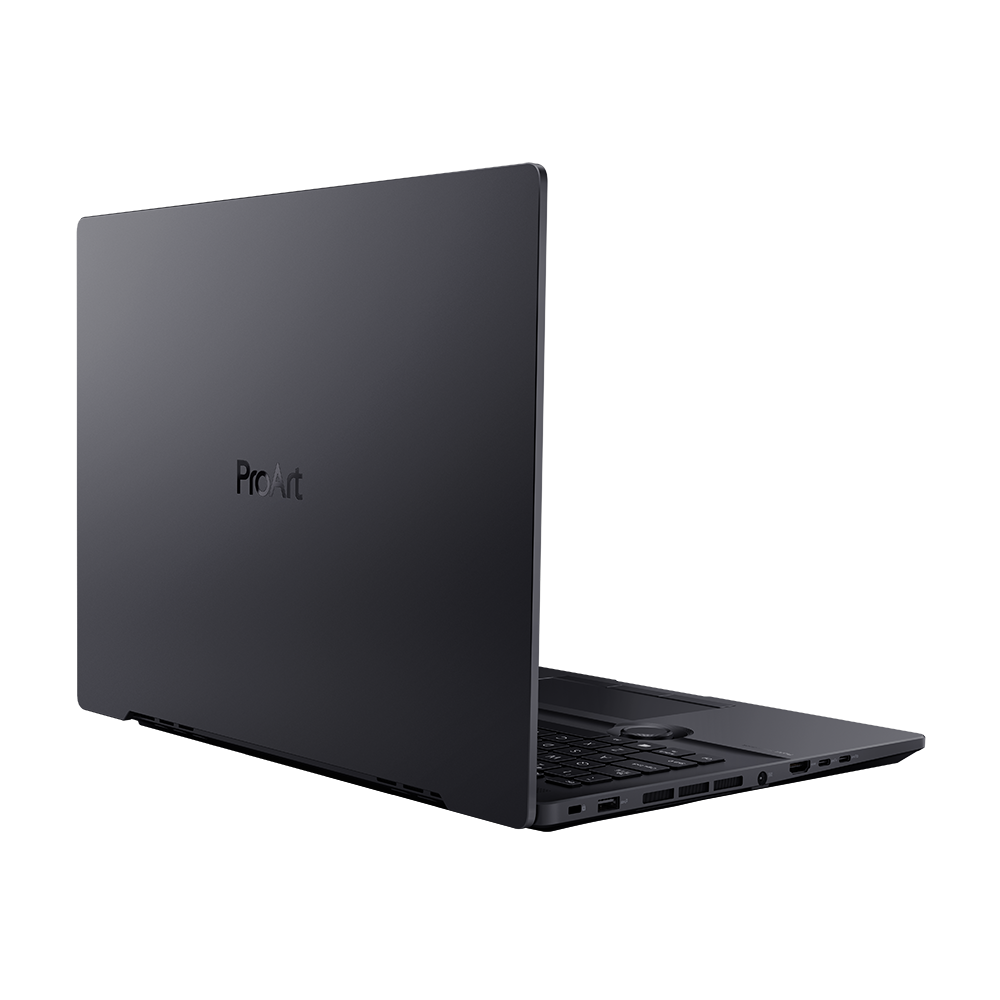

Looks like new, always

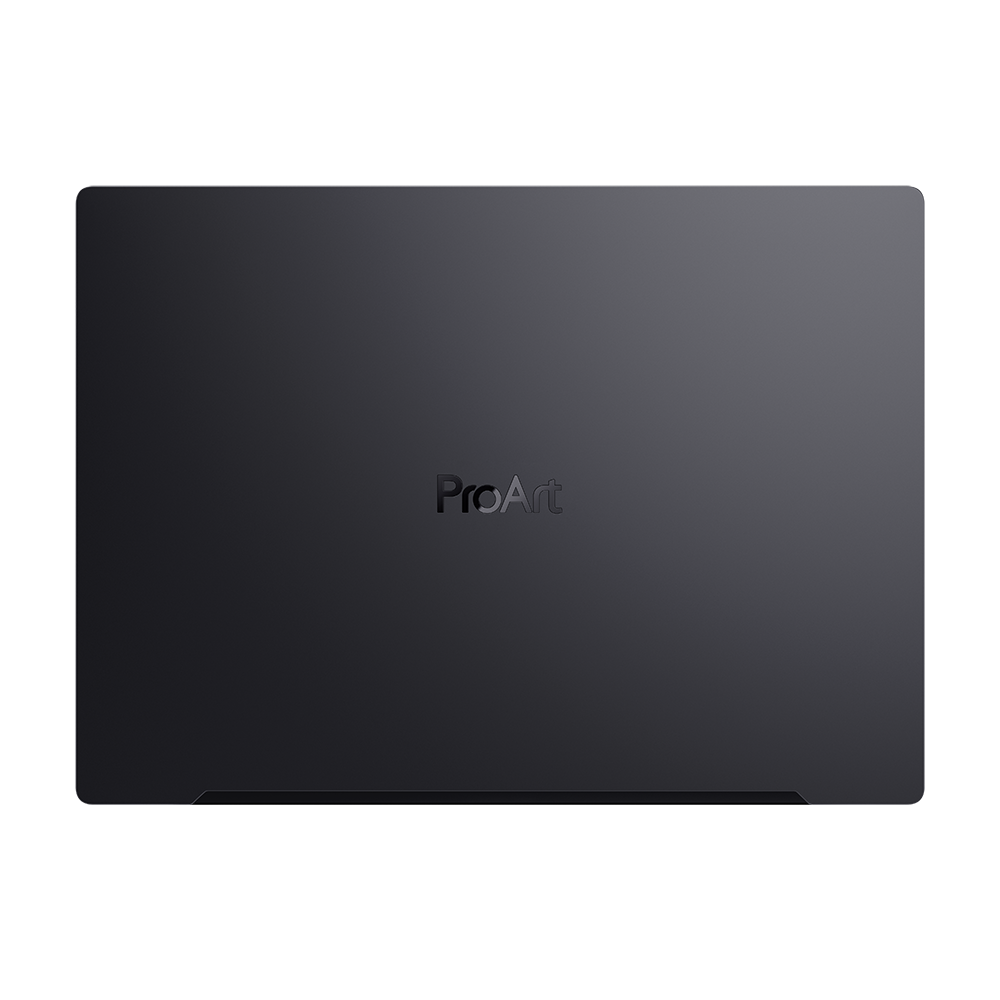

A high-tech anti-fingerprint nano-coating preserves the clean and minimalist matte Star Black finish of your ProArt Studiobook 16 OLED. This coating is not only tough and durable, but it also reduces reflectivity and gives your laptop a premium silky feel. Any water on the surface can simply be wiped off, thanks to the water-beading properties of the coating.





Ultratough, military-grade durability

ProArt Studiobook 16 OLED meets the ultra-demanding MIL-STD 810H military standard for reliability and durability, undergoing a punishing test regime that includes extended tests for operation in harsh environments. It also passes ASUS laptop tests that far exceed standards set by the industry.



  • Based on currently available creator laptops as of September 2021, having a built-in physical rotary control that works in conjunction with the 3-button touchpad and stylus-enabled touchpad to provide total creative control.
  • Unless otherwise stated, data read and write speeds are based on theoretical performance. Actual performance may vary in real-world situations.
  • Based on currently available laptop cooling fans as of September 2021.
  • Compared to a 71-blade standard cooling fan of the same size.
  • Based on currently available 16” 4K OLED HDR laptop displays as of September 2021.
  • The visual appearance of OLED displays may change over the product’s lifetime. This is expected behavior that can include image persistence or burn-in, where the display shows a faint remnant of an image even after a new image appears on the screen. This tends to occur only in extreme use cases, such as when a static, high-contrast image is continuously displayed for prolonged periods of time. ASUS laptops with an OLED display minimize this risk by setting Windows 10’s Dark mode as default, as well as shortening the idle time before the screen is turned off — both on mains (AC) and battery (DC) power. This dual approach minimizes the potential for burn-in to maximize the lifespan of your OLED display lifespan, and also reduces unnecessary power draw for optimal battery life. We also recommended adjusting the brightness of your OLED display to complement the ambient lighting in your environment, rather than keeping the screen at maximum brightness at all times. You should also ensure that you have an animated, dark-background screensaver enabled in the Windows 10 Settings tool.
  • Average tested result: Delta-E <2, +/- 0.5.
  • Compared to average LCD displays in the market, measuring energy emission of blue light in between 415-455 nm wavelength.
  • Compared to the average LCD laptop panel. The average LCD display has a 10 ms response time.
  • Specification varies according to the model.
Technical Specification
Specifications and Images are subject to change without notice.
Display
Screen Size / Type:

Resolution / Ratio:
16.0-inch, OLED, 400nits, WQUXGA, Glossy, DCI-P3: 100%, Pantone Validated

3840 X 2400 16:10
Processor
Processor:

Chipset:
AMD Ryzen™ 9 5900HX Processor 3.3GHz (16M Cache, up to 4.6GHz, 8 cores)

-
Hard Drive & Optical Drive

Capacity:

Optical Drive:

1TB M.2 NVMe™ PCIe® 3.0 Performance SSD (Upgradeable)
2x M.2 2280 PCIe 3.0x4 SSD slot
-
(External Options Available)
Graphics
Graphics Controller: NVIDIA® GeForce RTX™ 3060 Laptop GPU 6GB GDDR6
With Boost up to 1530MHz at 90W (105W with Dynamic Boost)
Memory
Standard Memory:

Number of SODIMMS:
32GB DDR4 3200MHz

2 Sockets; Max Memory 64GB
Audio
Features: SonicMaster
Smart Amp Technology
Built-in speaker
Built-in array microphone
harman/kardon (Premium)
with Cortana and Alexa voice-recognition support
Network / Communication
LAN:

Wireless:
-

Wi-Fi 5(802.11ac)
Bluetooth® 5.0 (Dual band) 2*2
(*BT version may change with OS upgrades.) -RangeBoost
Slots / Interface
Card Reader:

Input / Output Ports:
SD Express 7.0

1x USB 3.2 Gen 2 Type-A
2x USB 3.2 Gen 2 Type-C support display/power delivery/VR
1x HDMI 2.1
1x 3.5mm Combo Audio Jack
1x RJ45 Gigabit Ethernet
1x DC-in
Input Device
Keyboard:

Backlit Chiclet Keyboard with Num-key

Power
Battery:

AC Adaptor:
90WHrs, 4S1P, 4-cell Li-ion

ø6.0
240W AC Adapter
Output: 20V DC, 12A, 240W
Input: 100~240V AC 50/60Hz universal
Physical Characteristics
Color:

Dimension:

Unit Weight:
Star Black

14.25" x 10.39" x 0.78" ~ 0.84"

5.29 lbs
Additional Features




Security
MyASUS
ProArt Creator Hub


BIOS Booting User Password Protection
BIOS setup user password
HDD User Password Protection and Security
Trusted Platform Module (TPM) 2.0
Fingerprint sensor integrated with Power Key
IR webcam with Windows Hello support
Security Lock
Operating System
Standard OS: Microsoft® Windows 11 Pro
(some custom drivers may be downloaded and not supplied with the system)
Warranty
Warranty
Manufacturer Warranty: ASUS 1-year Limited International* Hardware Warranty

1 Year Accidental Damage Protection. (Must be registered in 60 days of order. North American Only. With 1-way free shipping.
(
More Info )

24/7 ASUS Telephone Technical Support
Free two-way standard shipping when sending laptops in for standard warranty repair
On-line problem resolution through web interface (BIOS, Driver update)
XOTIC PC Technical Support provided on models customized with Operating System
1 Year XOTIC PC Warranty provided on customized components
Additional Warranty Options Available
*International warranties apply to select countries, please contact ASUS customer service for details
