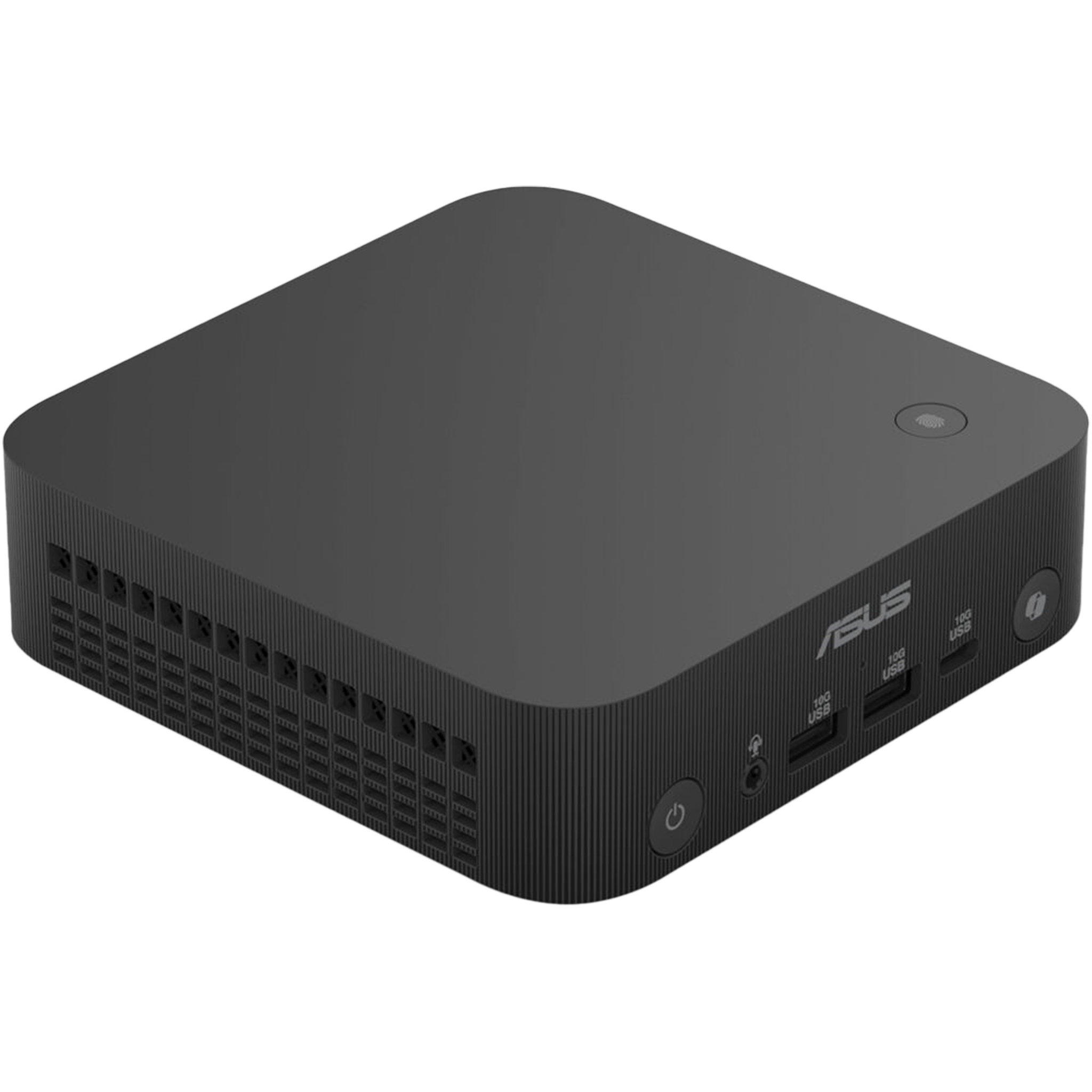

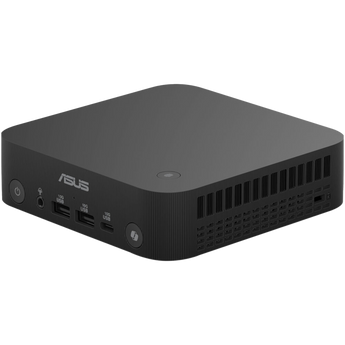

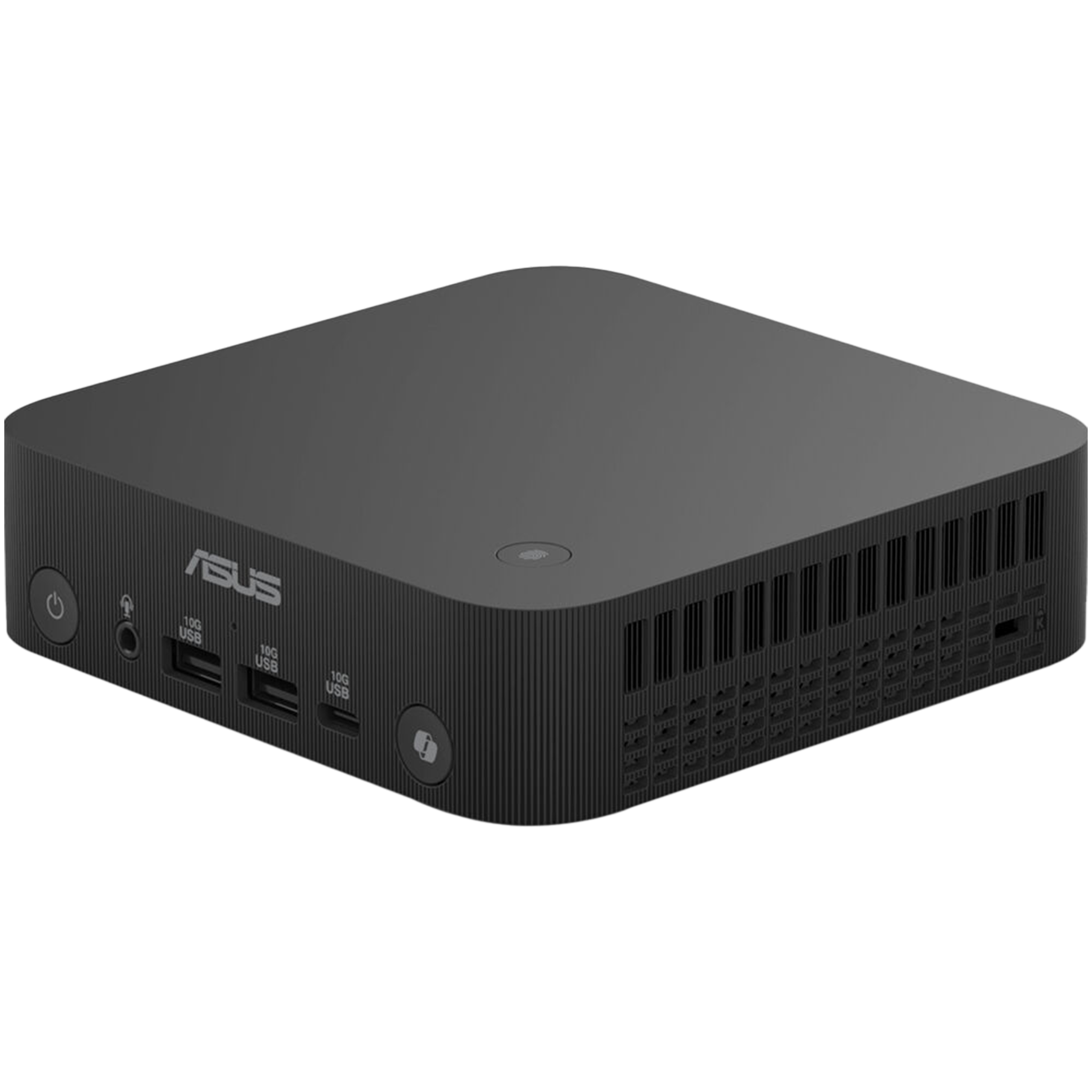

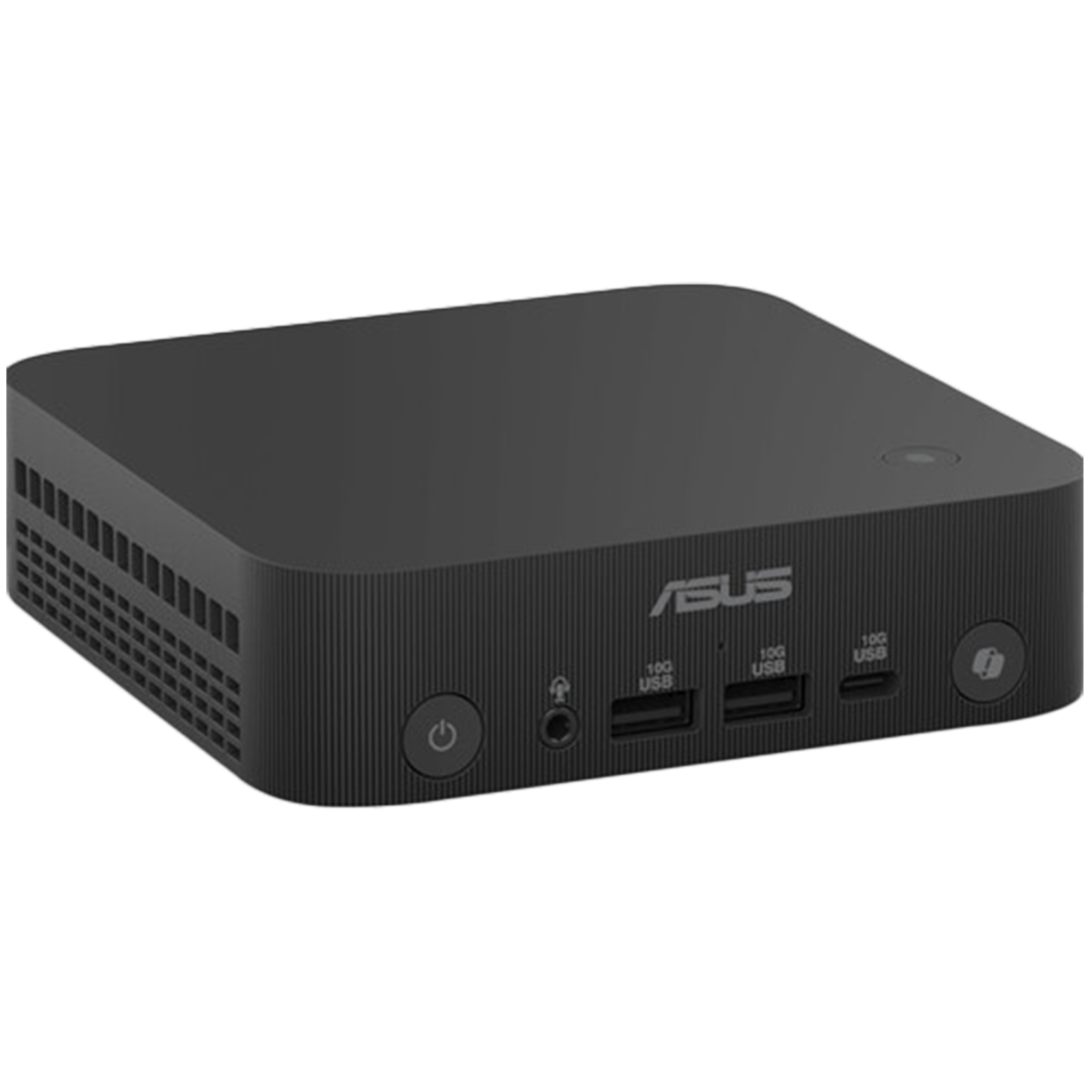

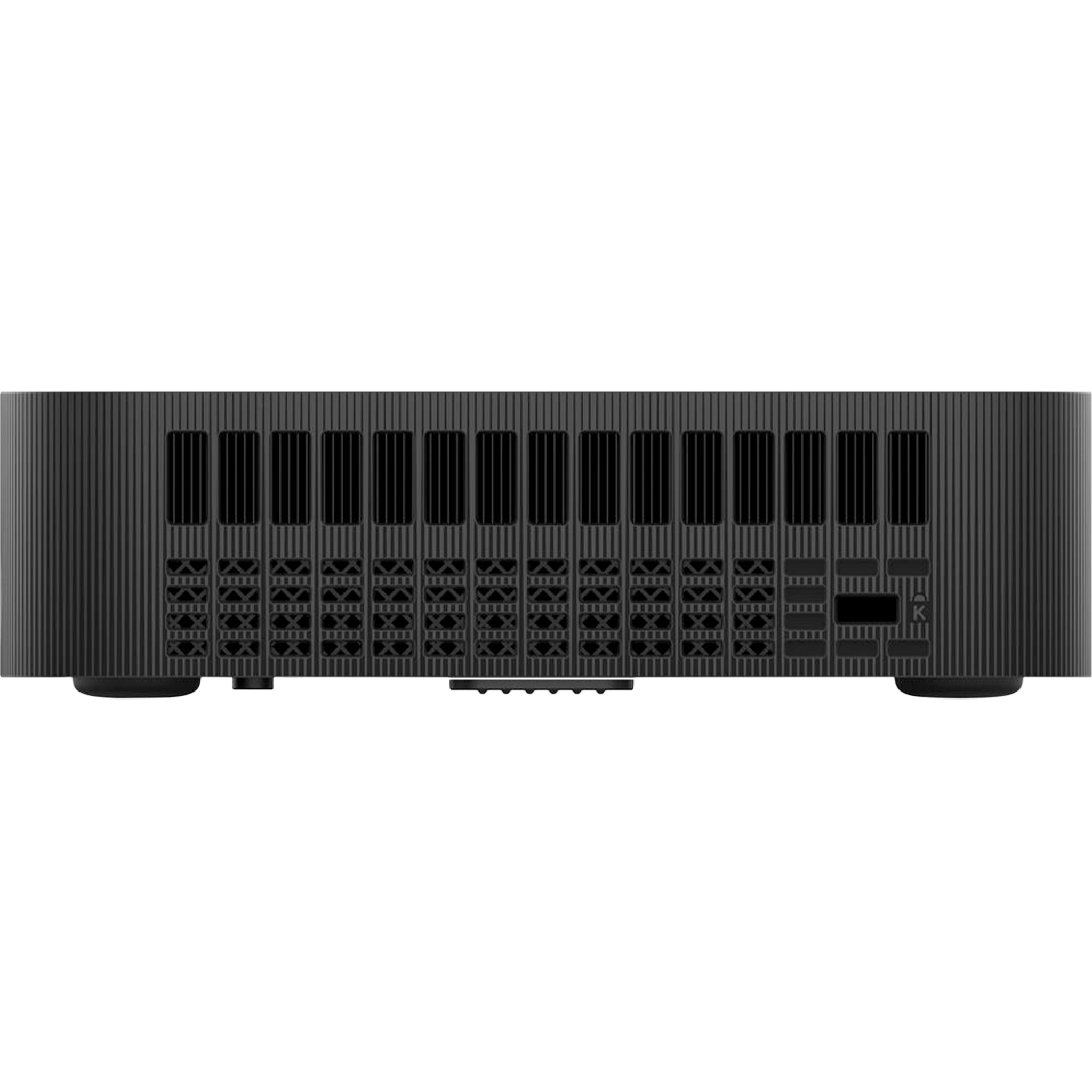

XOTIC PC GS54 Ultra-Compact Mini PC w/ AMD Zen 5 & DDR5

Specifications and images are subject to change without notice.

Processor

AMD Ryzen AI 7 350 Processor, cTDP 40W

Graphics

Integrated - Radeon™ Graphics (AMD Radeon™ 860M)

Memory

16GB DDR5 4800MHz (2X 8GB) (Upgradable)
2 x DDR5 SO-DIMM; Max 64GB

Storage

500GB NVME SSD (Upgradable)
1 x M.2 2280 PCIe 4.0 x4 SSD Slot

Operating System

Windows 11 Home (Upgradable)

Audio

1x 1/8" / 3.5 mm Headphone/Microphone Input/Output

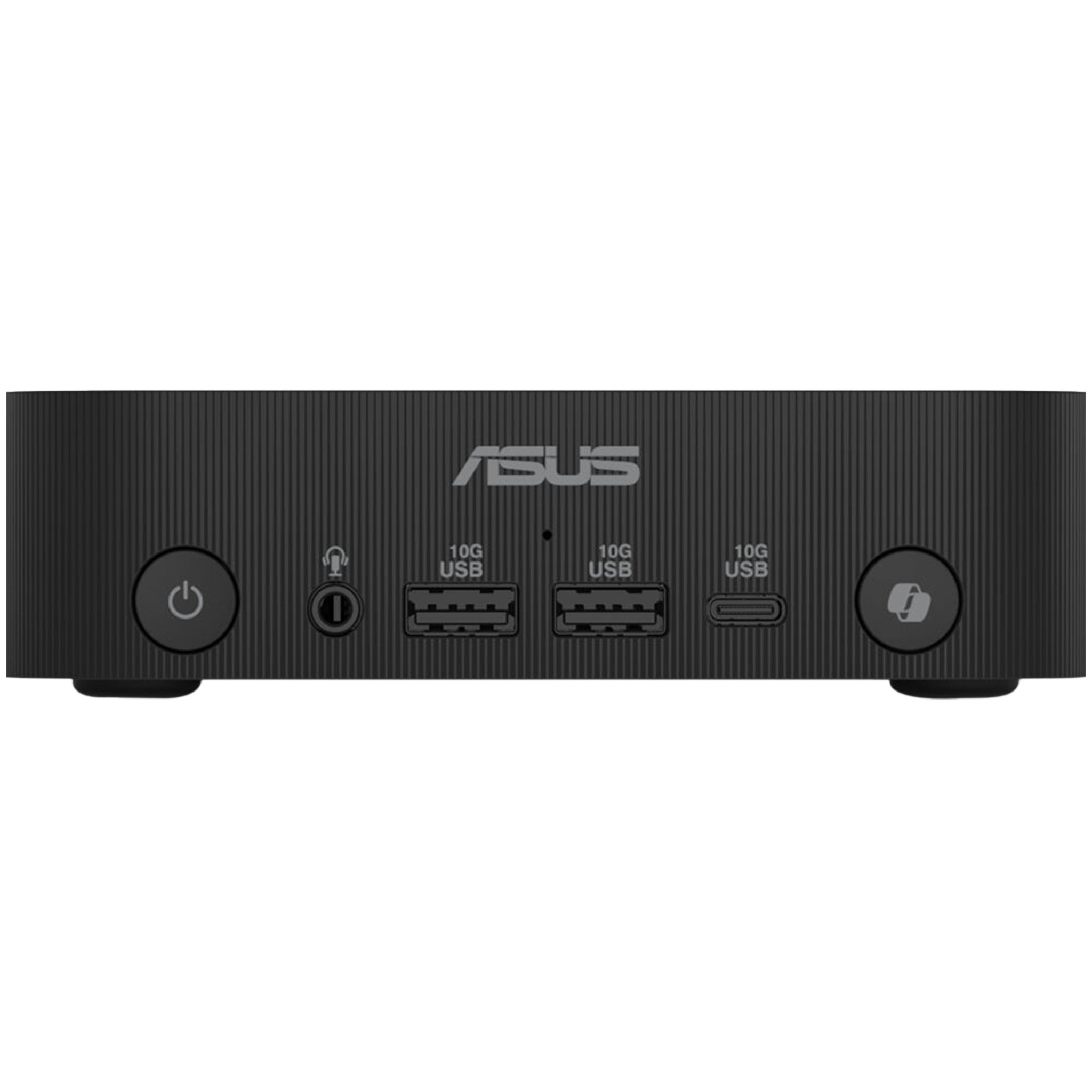

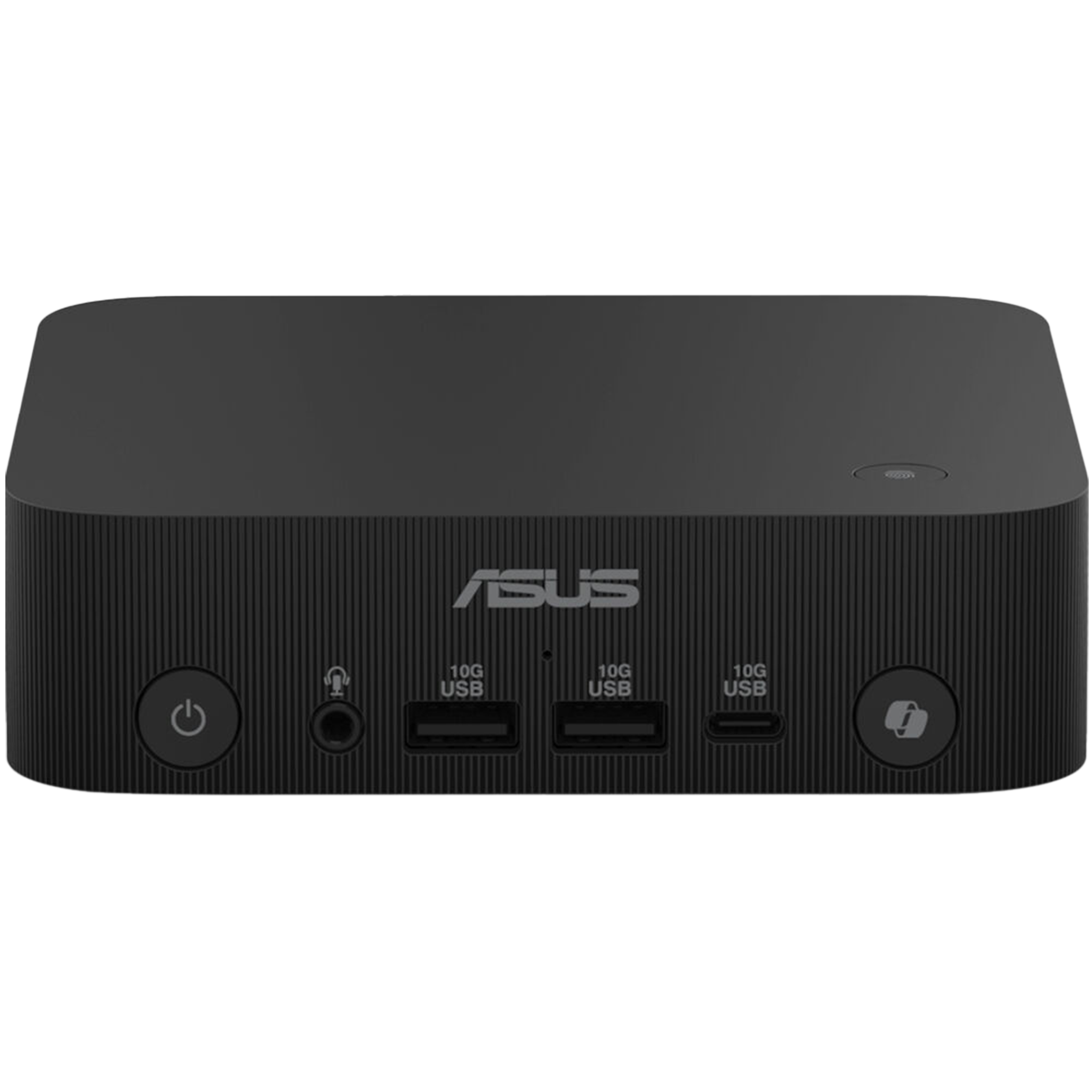

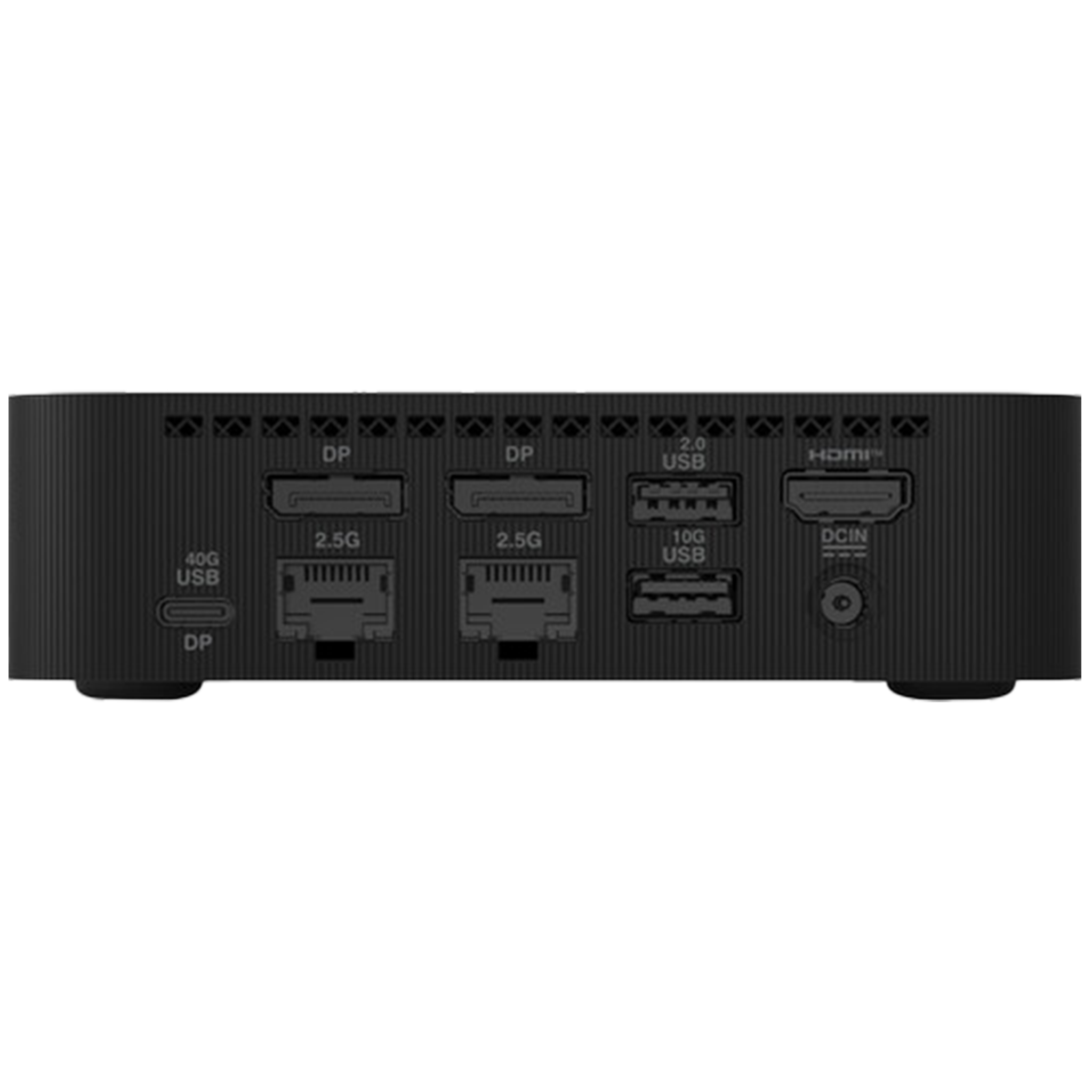

I/O Ports

1x USB-C (USB4) / Supports Video Alt Mode and Power Delivery
1x USB-C 3.1/3.2 Gen 2
3x USB-A 3.1/3.2 Gen 2
1x USB-A 2.0
1x HDMI 2.1
2x DisplayPort 1.4

Networking

Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
10/100/1000/2500 Mbps, 2.5G Intel® LAN

Power Supply

19Vdc, 6.32A, 120W Power Adapter
Power cord only

Chassis

ExpertCenter PN54 | ASUS

Dimensions (W x D x H)

130 x 130 x 34mm (5.1 x 5.1 x 1.3")

Weight

0.55 kg(barebone) ~1.21lbs

Form Factor

Micro PC

Security

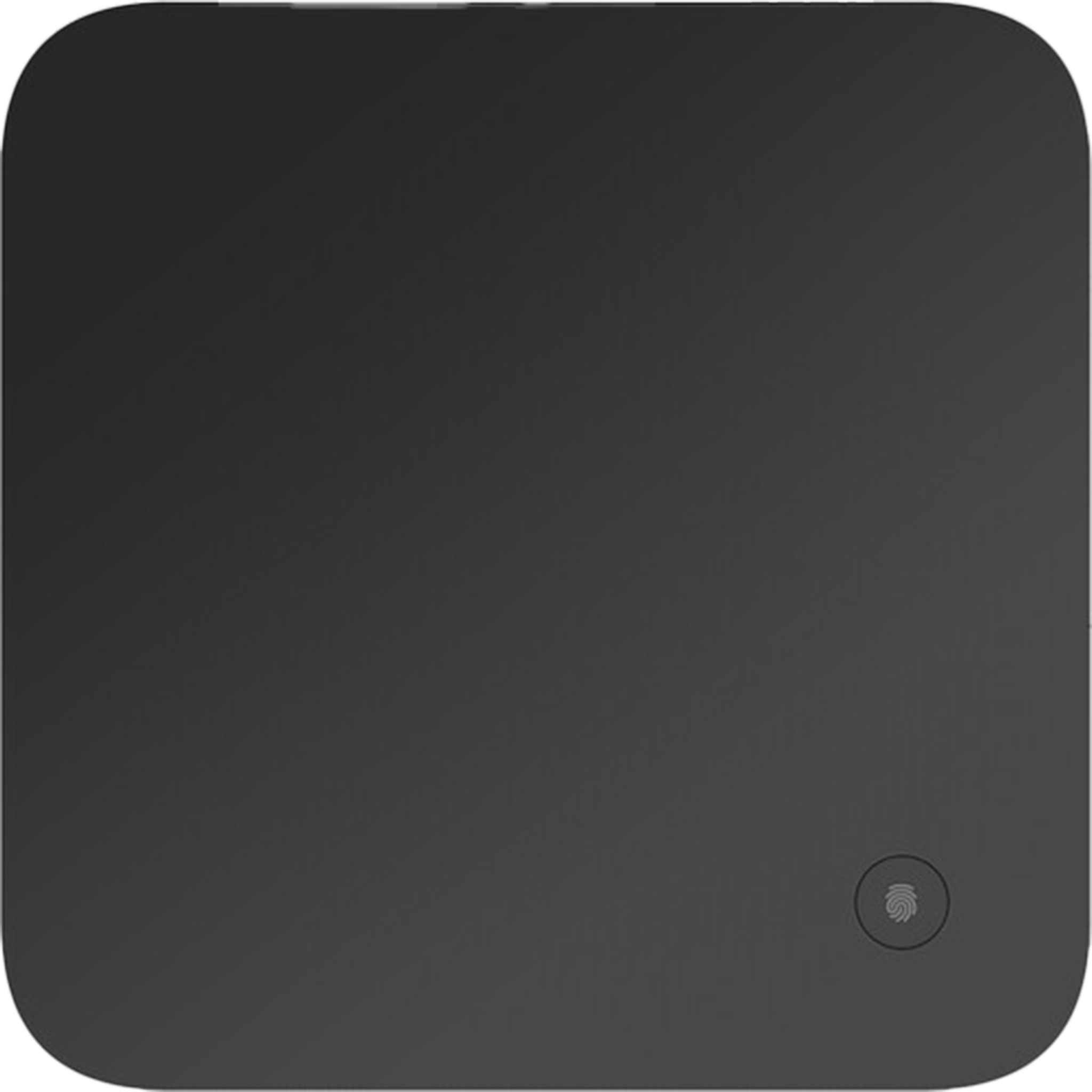

Fingerprint Reader, Firmware TPM (Software-Based), Kensington Lock Slot
