SATA vs. mSATA: What’s the Difference?
Solid-state drives have become the standard storage choice for modern computers thanks to their faster access times, silent operation, lower power consumption, and lack of moving mechanical parts. While hard disk drives still have a place when large amounts of inexpensive storage are needed, SSDs are generally preferred for operating systems, applications, games, and other performance-sensitive workloads.
If you are upgrading an older desktop or laptop, however, you may encounter several different SSD interfaces and form factors. Two of the most common on older hardware are SATA and mSATA.
Although their names are similar, SATA and mSATA are not exactly the same thing. More importantly, neither should be confused with the M.2 NVMe SSDs commonly found in modern gaming PCs.
Understanding the difference can help you choose a compatible drive and avoid buying an SSD that will not fit or operate correctly in your system.
What Is SATA?
Serial ATA, commonly called SATA, is an interface used to connect storage devices such as hard drives, solid-state drives, and optical drives to a computer.
SATA replaced the older Parallel ATA, or PATA, interface and became one of the dominant storage connections in desktop and laptop computers.
The most familiar SATA SSD is the 2.5-inch SATA SSD. These drives typically connect to a desktop motherboard with a SATA data cable and receive power through a separate SATA power connection from the power supply.
Current SATA technology supports a maximum interface speed of 6 Gb/s, or 6 gigabits per second. Because of protocol overhead, real-world sequential transfer speeds for SATA SSDs usually top out around 500 to 550 MB/s.
That is still dramatically faster than a traditional mechanical hard drive for booting Windows, launching applications, loading games, and accessing files.
SATA also remains useful today because it is widely compatible and makes it relatively easy to add additional SSD capacity to desktops with available SATA ports and drive bays.
When planning a storage upgrade alongside other components, it is always worth checking motherboard compatibility first. Our guide to choosing reliable gaming PC parts covers several of the compatibility considerations that should be checked before upgrading a system.
What Is mSATA?
mSATA stands for mini-SATA. It was developed as a smaller alternative to traditional 2.5-inch SATA drives for compact laptops, ultrabooks, embedded systems, and other devices where internal space was limited.
Instead of using a 2.5-inch enclosure and SATA cables, an mSATA SSD is a small circuit board that plugs directly into a compatible mSATA slot.
Despite the smaller form factor, mSATA still uses the SATA storage interface.
That distinction is important because mSATA is not inherently faster than a normal SATA SSD. Both are limited by the SATA 6 Gb/s interface.
The main advantage of mSATA was its physical size, not additional performance.
Early mSATA drives were commonly offered in relatively small capacities and were sometimes used as cache drives alongside larger mechanical hard drives. Larger-capacity mSATA SSDs eventually became available and could also be used as primary system drives.
Today, however, mSATA is considered primarily a legacy storage format. Modern laptops, desktops, and mini PCs have largely moved to M.2 SSDs instead.

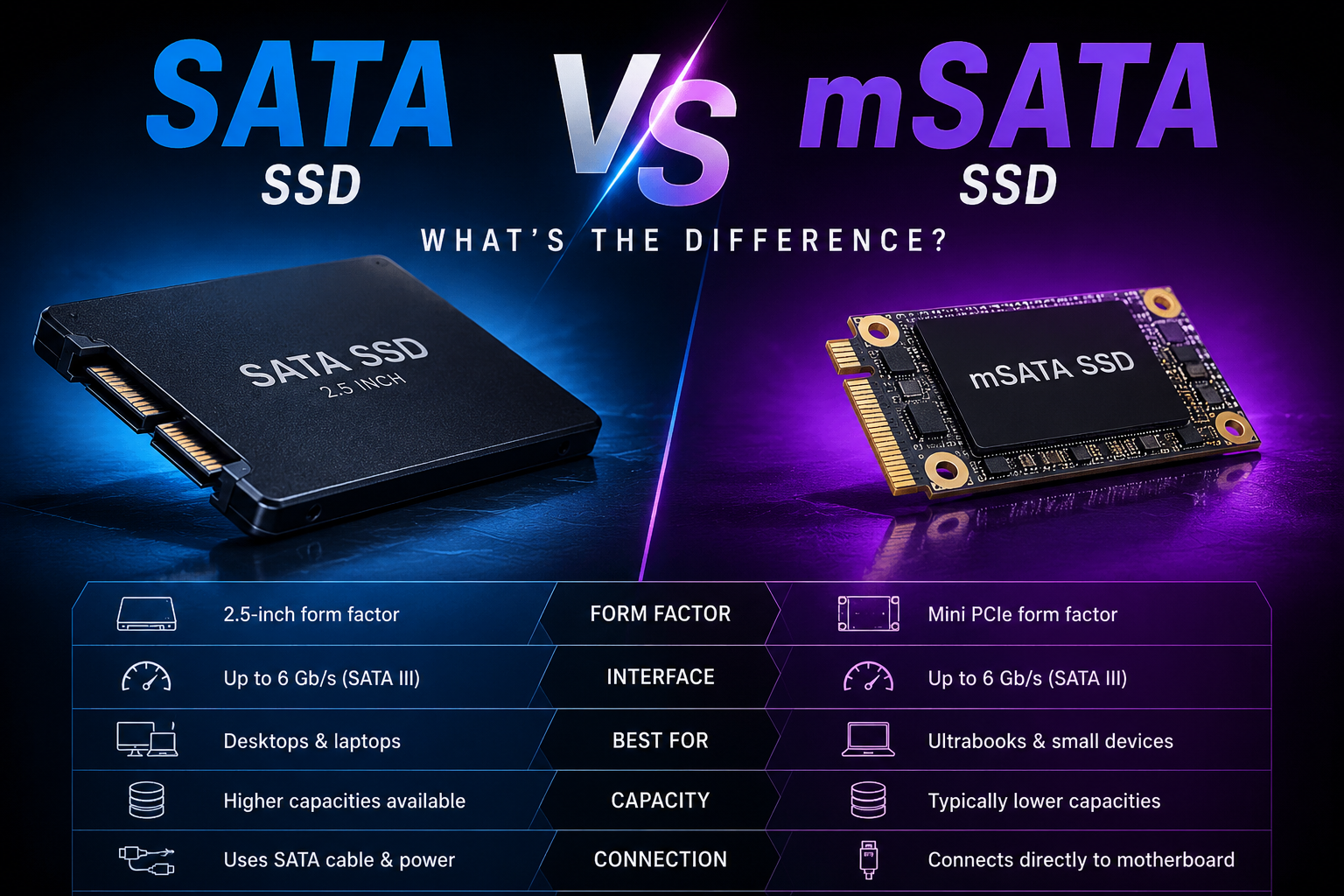

SATA vs. mSATA
| Feature | SATA SSD | mSATA SSD |
|---|---|---|
| Interface | SATA | SATA |
| Maximum Interface Speed | 6 Gb/s | 6 Gb/s |
| Typical Form Factor | 2.5-inch drive | Small circuit board |
| Connection | SATA data and power connections | Dedicated mSATA slot |
| Performance | Similar | Similar |
| Common Use | Desktops, older laptops, secondary storage | Older thin laptops and compact systems |
| Modern Relevance | Still widely supported | Primarily legacy hardware |
| Interchangeable With M.2? | No | No |
The most important takeaway is that SATA and mSATA can provide similar performance because they use the same underlying SATA interface.
Choosing between them is primarily a matter of physical compatibility.
Is mSATA Faster Than SATA?
No.
A common misconception is that an mSATA SSD is faster because it plugs directly into the motherboard. In reality, both mSATA and traditional SATA SSDs communicate through the SATA interface and are subject to the same bandwidth limitations.
Moving from a 2.5-inch SATA SSD to an mSATA SSD will therefore not provide the kind of performance improvement you would expect when moving from SATA to an NVMe SSD.
If both drives use similar NAND flash and controllers, their performance can be very similar.
Is mSATA the Same as M.2?
No. This is one of the most important distinctions for anyone upgrading an older PC.
mSATA and M.2 SSDs can look somewhat similar because both are small circuit boards that mount directly to a motherboard. However, they use different connectors and are not interchangeable.
M.2 is a newer form factor that can support multiple storage interfaces depending on the motherboard and SSD.
An M.2 drive may use:
-
SATA
-
PCI Express
-
NVMe over PCI Express
This also means that M.2 does not automatically mean NVMe. Some older M.2 SSDs still use the SATA interface and are limited to SATA speeds.
Modern M.2 NVMe SSDs communicate over PCI Express and can provide substantially more bandwidth than SATA-based storage.
SATA vs. mSATA vs. M.2 NVMe
For modern computers, the more useful comparison is often SATA versus NVMe rather than SATA versus mSATA.
A traditional SATA SSD and an mSATA SSD both operate through SATA and therefore have similar performance limitations.
An M.2 NVMe SSD communicates through PCI Express using the NVMe protocol, which was designed specifically for high-speed solid-state storage. This allows modern NVMe SSDs to deliver considerably higher sequential transfer speeds and lower latency than SATA drives.
That is why M.2 NVMe storage has become the preferred choice for operating systems, games, applications, content creation, and other performance-sensitive workloads in modern PCs.
If you're shopping for a current system rather than upgrading older hardware, many modern gaming PCs now use NVMe SSD storage as their primary drive.
Should You Still Buy a SATA SSD?
Absolutely, depending on the system and your needs.
SATA SSDs remain useful for:
-
Upgrading older desktops and laptops
-
Adding inexpensive secondary SSD storage
-
Expanding a game library
-
Storing photos, videos, and project files
-
Systems without available M.2 slots
-
Builds where maximum storage performance is not necessary
Replacing a mechanical hard drive with a SATA SSD can still provide one of the most noticeable upgrades available for an older computer.
For newer gaming systems, however, an NVMe SSD generally makes more sense as the primary drive when the motherboard supports it.
Should You Still Buy an mSATA SSD?
An mSATA SSD makes sense mainly when you are repairing or upgrading a system specifically designed for mSATA storage.
Before buying one, check your laptop or motherboard documentation carefully. A slot that physically resembles mSATA may use another connection standard, and an M.2 SSD cannot simply be installed in an mSATA slot.
You should also verify that the system firmware supports booting from the mSATA device if you plan to install your operating system on it.
For a new PC build, there is generally little reason to choose mSATA. M.2 NVMe storage offers significantly better performance and far broader support among modern motherboards.
If long-term upgradeability is important, our guide to the best components for gaming longevity explains why current standards and non-proprietary components matter when planning a system.
SATA vs. mSATA: Which Is Better?
Neither SATA nor mSATA is universally better because they serve different physical requirements while using the same underlying SATA interface.
For older hardware:
Choose a 2.5-inch SATA SSD if your desktop or laptop has a standard SATA connection and drive bay.
Choose an mSATA SSD only if your system specifically includes an mSATA slot.
For modern systems:
Choose an M.2 NVMe SSD when your motherboard supports it and storage performance is a priority.
SATA SSDs remain excellent options for additional storage, while mSATA is now primarily useful for maintaining or upgrading legacy hardware.
The most important rule is simple: check your motherboard or laptop documentation before purchasing a drive. SATA, mSATA, M.2 SATA, and M.2 NVMe may all be solid-state storage technologies, but their connectors, interfaces, compatibility, and performance can be very different.
Frequently Asked Questions
Is mSATA faster than SATA?
No. Both mSATA and standard SATA SSDs use the SATA interface and are limited to SATA 6 Gb/s. Actual SSD performance depends on the drive itself, but mSATA does not gain additional speed simply because it plugs directly into the motherboard.
Can you put an mSATA SSD in an M.2 slot?
No. mSATA and M.2 use different connectors and standards and are not directly interchangeable.
Is SATA obsolete?
No. SATA remains widely used for hard drives, 2.5-inch SSDs, optical drives, and secondary storage. It is slower than modern NVMe storage, but it remains useful because of its broad compatibility and relatively inexpensive storage options.
Is mSATA obsolete?
For new consumer computers, mSATA is largely a legacy technology. It can still be useful when upgrading older laptops, mini PCs, and embedded systems that specifically require an mSATA drive.
What type of SSD should I use for a gaming PC?
For a modern gaming PC, an M.2 NVMe SSD is generally the preferred primary storage option when supported by the motherboard. SATA SSDs are still useful for secondary game storage or expanding overall capacity.
