Display
14” Full HD 144Hz, Wide View Angle, 72% NTSC Display, Matte Finished
Resolution / Ratio
1920x1080 16:10
Processor
13th Gen Intel Core i5-13500H Processor (2.6GHz, up to 4.7GHz Turbo Boost), 4 P-cores & 8 E-cores / 16 thread, 18MB Cache (Upgradeable)
Graphics
Intel Iris Xe Graphics (Integrated in Core i5 / i7 CPU)
• Intel Xe Micro architecture
• Variable Rate Shading
• Microsoft DirectX 12 compatible
• Intel DLBoost: DP4A
Memory
8GB DDR4 3200MHz (Upgradeable)
Supports Dual Channel DDR4
Two 260 pins SODIMM sockets, support for DDR4 up to 3200 MHz
(Real operation frequency depends on processor)
Expandable up to 64GB, depends on 8GB/16GB/32GB SODIMM module
Storage
500GB NVMe SSD (Upgradeable)
1x M.2 2280 SSD, PCIe Gen 4x4 interface
Operating System
No Operating System Standard (Windows® 11 Home / Pro Available)
(some custom drivers may be downloaded and not supplied with the system)
Slots/Interface
Two M.2 Card Slots,
- 1st for WLAN Combo M.2 2230 Card with PCIe and USB interface
- 2nd for SSD M.2 2280 Card with PCIe Gen 4x4 interface

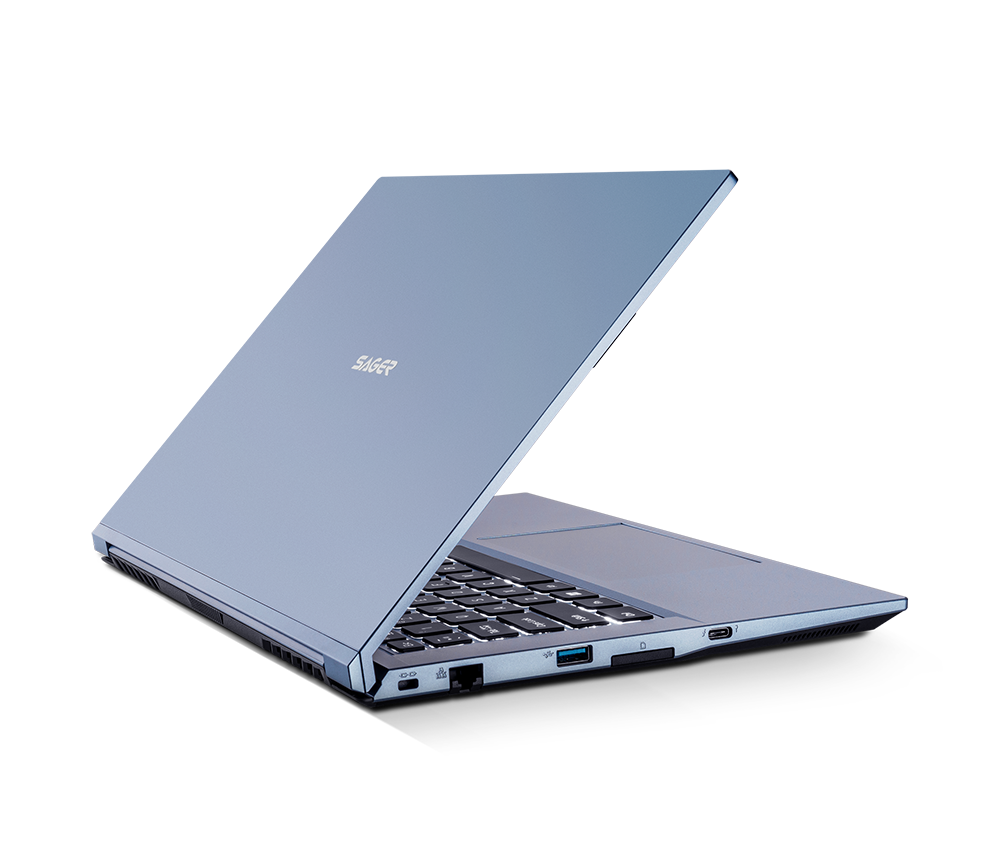

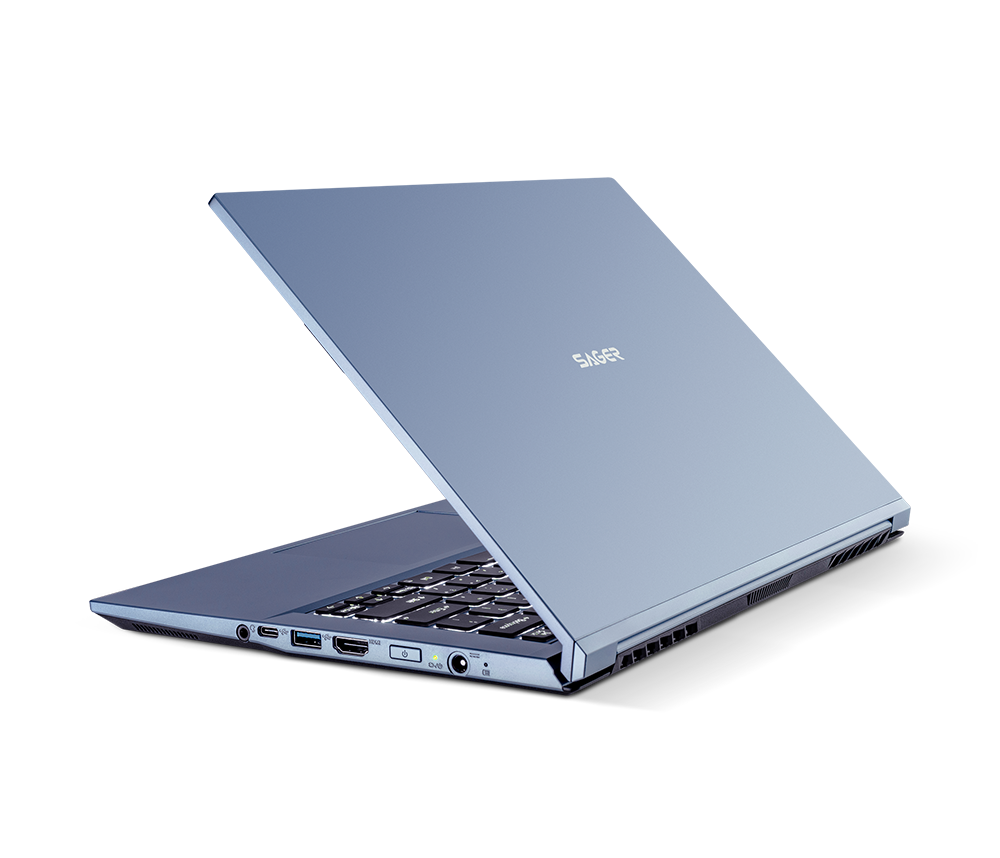

I/O Ports
1x USB 3.2 Gen 2 port (Type C)
2x USB 3.2 Gen 1 Ports (Type A)
1x HDMI output Port (with HDCP)
1x 2-in-1 Audio Combo Jack (Headphone / Microphone)
1x RJ-45 LAN port

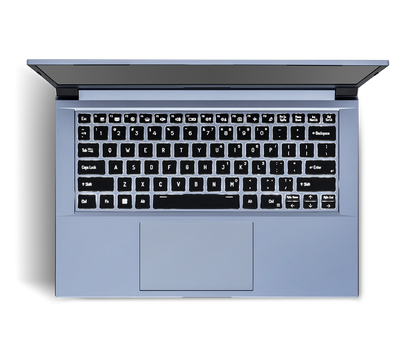

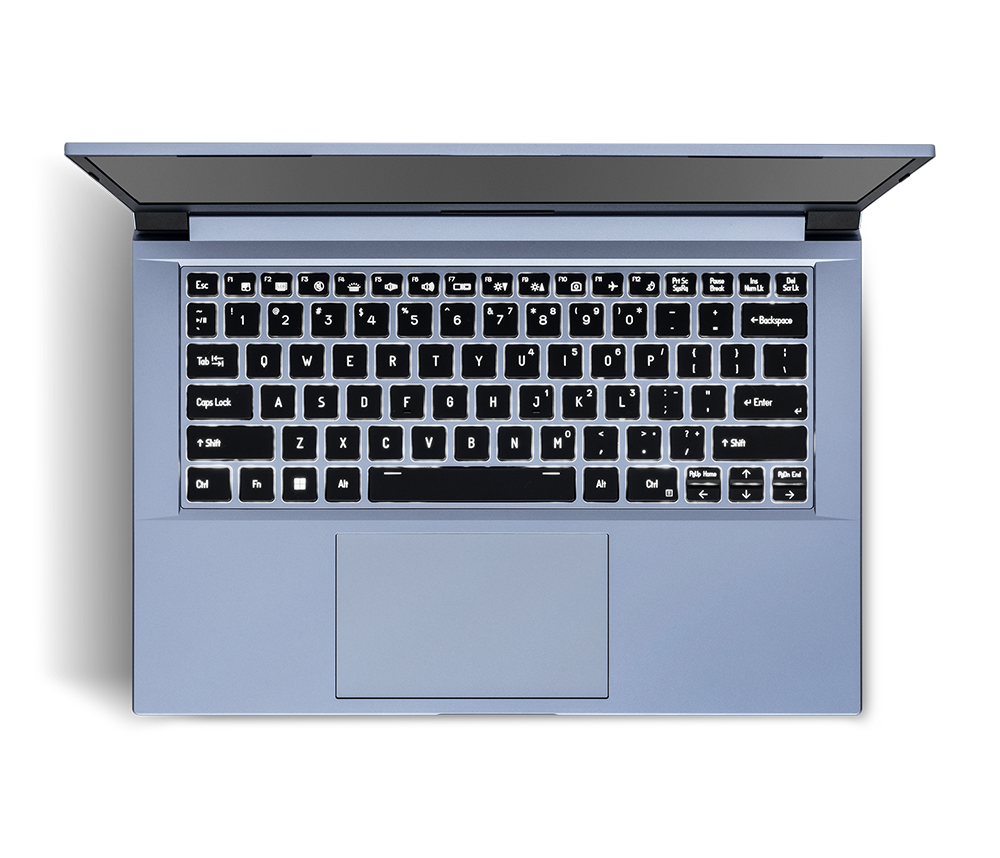

Keyboard & Touchpad
Multi languages A4 size isolated illuminated keyboard (White Color)
Integrated Click pad with Microsoft PTP multi-gesture and scrolling function
Camera
Built-in 1.0M HD Video Camera
Audio
High Definition audio interface
Built-in array microphone
Built-in two speakers
Network and Communication
Built-in Gigabit Ethernet LAN
Intel Dual Band Wi-Fi 6 AX211
Bluetooth®, M.2 interface
Battery
Embedded 4 cells Smart Lithium-Ion battery pack, 53.35WH
Power Supply
Full Range 90W AC Adapter AC-in 100~240V, 50~60Hz, DC output 19V, 4.74A

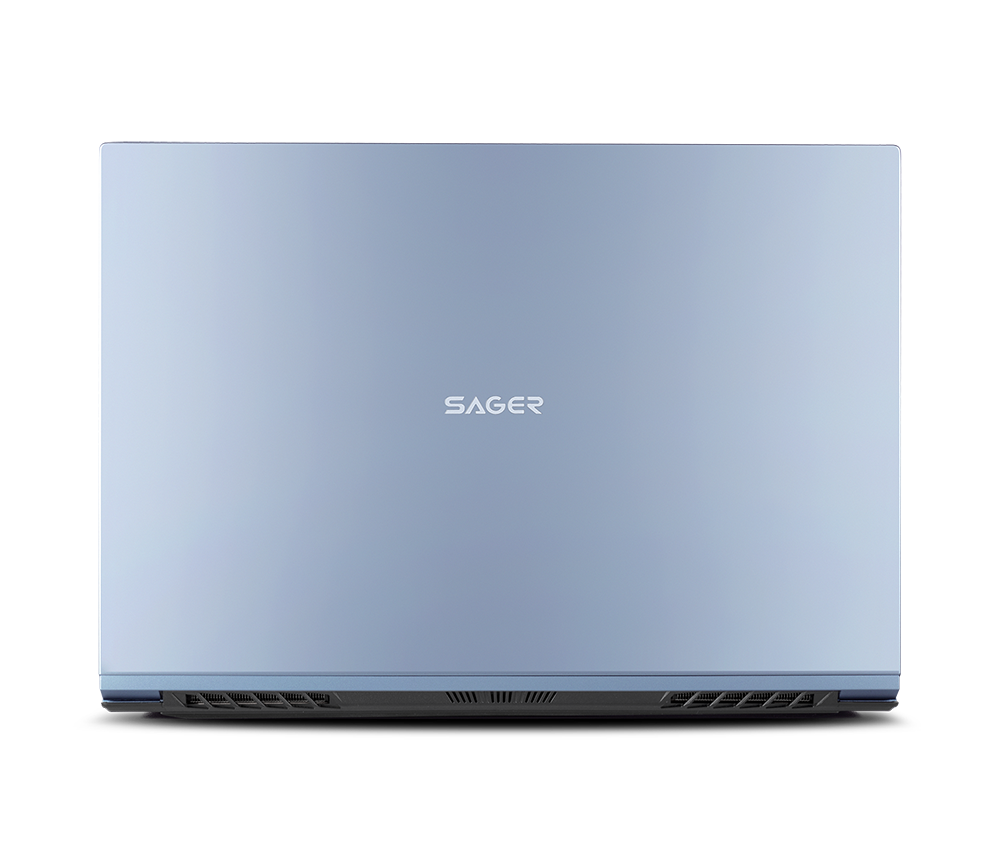

Color
Metal top case
Dimensions
12.79” (w) x 8.86” (d) x 0.69” (h)
Weight
2.98 lbs. including Bare bone and Battery Pack
Security
Security (Kensington Type) Lock Slot
Intel PTT (Platform Trust Technology)
PM 2.0
Features
FlexiCharger
Windows Mixed Reality Compatible
